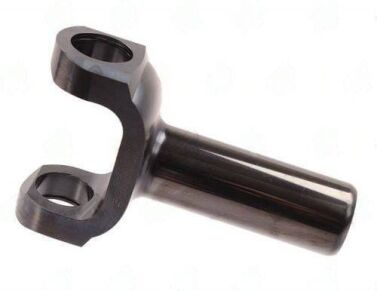

T3-3-8251HP – Transmission Yokes – 1350 Series – 1.500″ Hub Dia – Center U Joint To End 6.500
$225.04
10
People watching this product now!
Description
T3-3-8251Hp Transmission Yoke — 1350 series, 27/28 X 1.220 spline | 1.500″ hub | 6.500″ CJ-to-end. C4 / Forged Steel / Black Oxidized / CHROMOLY. Genuine direct replacement.
Full Description
The T3-3-8251HP transmission yoke is the connection between the gearbox tailshaft and the front of the driveshaft. It splines onto the transmission output shaft and carries the front u-joint of the driveshaft. For 1350 series applications, the spline count and hub diameter are the two specs that determine whether this part fits your tailshaft correctly.
T3-3-8251Hp Transmission Yoke — 1350 Series Specs & Tailshaft Fit
The 1350 series covers 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4. The T3-3-8251HP transmission yoke specs: 27/28 X 1.220 spline | 1.500" hub | 6.500" CJ-to-end. Compatible with: C4 / Forged Steel / Black Oxidized / CHROMOLY. Hub diameter determines engagement depth on the tailshaft — if the hub is too short, the splines don't fully engage. CJ-to-end affects driveshaft working length.
After a transmission rebuild or swap, confirm the tailshaft spline count hasn't changed before installing the T3-3-8251HP transmission yoke. Not all 1350 series transmissions use the same output spline across all years and configurations. Count the splines on the actual shaft.
Key Features
- Series: 1350 — 3/4-ton trucks — F-250, Ram 2500, Dana 44/60 axles, performance 4x4
- Spline: 27/28 X 1.220 — must match transmission tailshaft
- Hub dia: 1.500" — determines spline engagement depth
- CJ-to-end: 6.500" — affects driveshaft working length
- Compatible with: C4 / Forged Steel / Black Oxidized / CHROMOLY
- Brand: UDS
Specifications
- SKU: T3-3-8251HP
- Brand: UDS
- Series: 1350
- Spline: 27/28 X 1.220
- Hub Dia: 1.500"
- CJ to End: 6.500"
- Notes: C4 / Forged Steel / Black Oxidized / CHROMOLY
Additional information
| Center u joint to end |
6.500 |
|---|---|
| Counter bore dia |
0 |
| Hub dia |
1.500 |
| Notes |
C4 / Forged Steel / Black Oxidized / CHROMOLY |
| Partn number |
T3-3-8251HP |
| Series |
1350 |
| Splines count dia |
27/28 X 1.220 |
