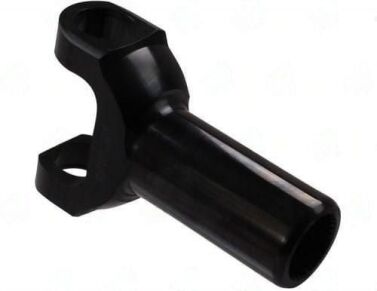

T2-3-10831HP – Transmission Yokes – 1330 Series – 31/32 X 1.378 Splines – 1.886″ Hub Dia
$213.33
1 in stock
Description
T2-3-10831HP forged chromoly full-spline 1330 series yoke for 1988-96 GM trucks and SUVs, 31/32-spline x 1.378″ diameter, 6.750″ C/U-joint to end.
Full Description
Spec Summary: T2-3-10831HP -- 1330 Series | 1988-96 GM Trucks/SUVs | Full Spline | Forged Steel Chromoly | 31/32-Spline x 1.378" | C/U-joint to End 6.750" | Hub 1.886"
The 1988-1996 generation of full-size GM trucks (C/K pickups) and SUVs (Suburban, Blazer, Jimmy) used a 1330 series driveshaft on many configurations -- the 31/32-spline x 1.378" profile at 1.886" hub is the GM output specification for this era. The full-spline engagement runs the complete hub bore depth, providing maximum torque contact area for high-mile, high-use trucks.
The forged chromoly construction on T2-3-10831HP makes it a direct upgrade from the OE cast steel yoke on high-mileage trucks where the stock yoke has developed spline fretting or hub wear. At 6.750" C/U-joint to end, this yoke fits the standard-wheelbase C/K configurations. Compare with T2-3-10201HP (7.000", 30/31-spline) for a slightly different GM truck configuration at a longer C/U-joint to end dimension.
Additional information
| Center u joint to end | 6.750 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Notes | Full spline, 1988-96 GM trucks/SUV’s / This Yoke is Forged Steel and Black Oxidized. / CHROMOLY |
| Partn number | T2-3-10831HP |
| Series | 1330 |
| Splines count dia | 31/32 X 1.378 |
