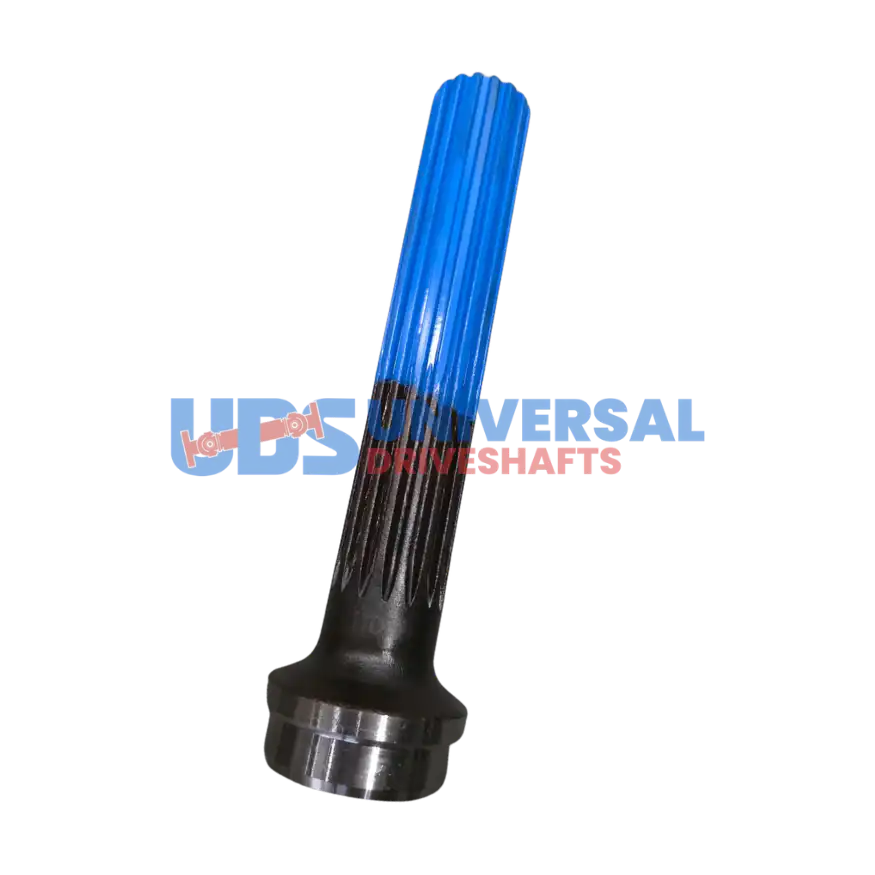

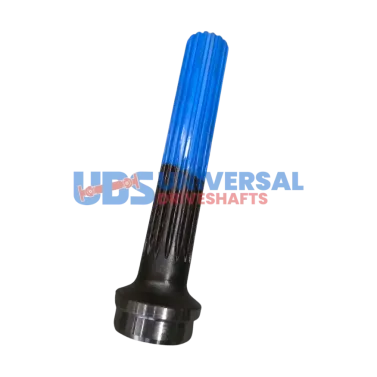

N3-40-2512 Super Duty Solid Butt Fits Tube 2.500×0.120 Can Be Machined To Any Tube Size – HARDENED SPLINES 7.000″ End To Weld 8.876″
$83.08
+50 in stock
17
People watching this product now!
Description
N3-40-2512 super duty solid butt stub shaft, hardened splines, 16×1.500″ spline, 2.500″x0.120″ tube, 2.270″ butt dia, 8.760″ end-to-weld. Can be machined to other tube sizes. Verify tube OD/wall and mating slip yoke spline spec before ordering.
Full Description
N3-40-2512 Super Duty Solid Butt Stub Shaft 16x1.500 Spline Fits 2.500x0.120 Tube
The N3-40-2512 is a super duty solid butt stub shaft with hardened splines, designed for welding into 2.500" OD x 0.120" wall driveshaft tubing. The splined end carries 16 splines at 1.500" diameter with an active spline length of 6.530" and a noted spline engagement depth of 7 inches. The solid butt configuration — butt diameter 2.270" — is machined to fit inside the 2.500" tube OD before welding, with an end-to-weld length of 8.760". Per the product notes, this is a solid butt design with 7-inch spline length and hardened splines for increased wear resistance.
Specifications
- Part Number: N3-40-2512
- Style: Slip (Solid Butt)
- Splines Count x Diameter: 16 x 1.500"
- Spline Length: 6.530" (7" per notes)
- Tube Diameter x Wall: 2.500" x 0.120"
- Butt Diameter: 2.270"
- End to Weld: 8.760"
- Notes: Spline length 7 inch — Solid Butt. Can be machined to any tube size.
When fitting the N3-40-2512, the butt diameter of 2.270" fits inside 2.500" tube ID after accounting for wall thickness; with 0.120" wall on a 2.500" OD tube, the ID is approximately 2.260" — confirm the butt-to-tube clearance is within your welding specification before assembly. The notes indicate this stub can be machined to accept other tube diameters, but verify machining limits with the supplier before reducing the butt below spec. The 8.760" end-to-weld dimension establishes how deep the stub seats into the tube end.
The N3-40-2512 is a slip-style stub shaft — the 1.500" x 16-spline bore accepts a matching slip yoke that slides over these splines during driveshaft operation. Hardened splines on the N3-40-2512 are critical in high-torque or frequent-slip applications where standard splines would wear prematurely. Verify the mating slip yoke carries a 1.500" x 16-spline bore before pairing with this stub shaft. Confirm tube OD and wall spec match 2.500" x 0.120" before welding the N3-40-2512 into the tube assembly.
Additional information
| Bearing dia | N/A |
|---|---|
| Butt dia | 2.270 |
| End to weld | 8.760 |
| Splines count dia | 16 x 1.500 |
| Splines length | 6.530 |
| Tube dia wall | 2.500X0.120 |
| Notes | SPLINE LENGTH 7 Inch – SOLID BUTT |
| Partn number | N3-40-2512 |
| Tube dia | 2.500 |
| Tube wall | 0.120 |
| Style | Slip |
