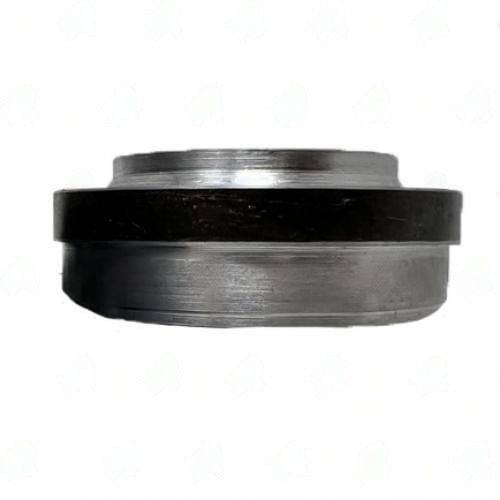

IC36 – Increase Bushing – Length 1″ – From Tube 2-083 – Inside Dia 1.834″ – Outer Dia 3″ – To Tube 3-065

IC36 Increase Bushing 2-083 to 3-065

The IC36 is a driveshaft increase bushing transitioning from a 2-083 tube (2.0" OD x 0.083" wall) to a 3-065 tube (3.0" OD x 0.065" wall). Inside diameter is 1.834", outer diameter is 3.0", and length is 1.0".

Specifications

• Part Number: IC36
• From Tube: 2-083
• To Tube: 3-065
• Inside Diameter: 1.834"
• Outer Diameter: 3.0"
• Length: 1.0"

When fitting the IC36, confirm the existing tube is 2.0" OD x 0.083" wall (2-083) and the target tube is 3.0" OD x 0.065" wall (3-065). The 1.834" ID accommodates the 2-083 tube end. Verify the tube is cut square and free of burrs before inserting into the bushing. Confirm the target 3-065 tube OD is exactly 3.0" to ensure the bushing OD provides a flush weld joint.

This bushing steps from a 2" small-tube assembly to a 3" large-tube assembly. The 0.083" to 0.065" wall change between the two tubes is relevant for weld preparation; the thinner 3-065 wall requires adjusted weld parameters. The 1.0" length provides adequate weld land on both tube surfaces.

The IC36 ID of 1.834" and OD of 3.0" are the defining fitment dimensions. Verify both tube specifications (2-083 inner and 3-065 outer) before ordering. A wall thickness mismatch on either tube will affect ID clearance and OD fit at the weld joint.
