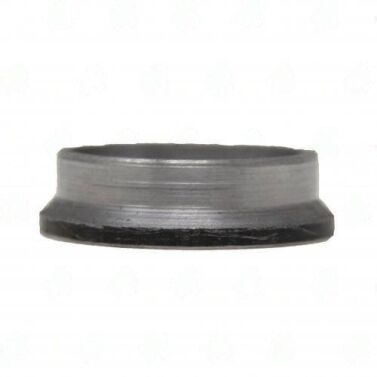

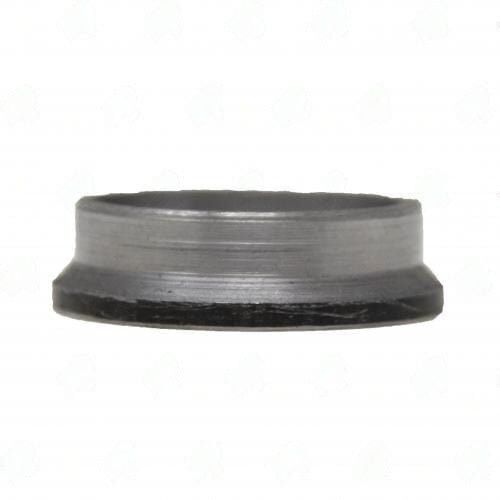

IC31 – Increase Bushing – From Tube 45-2.5mm – Inside Dia 1.575″ – Outer Dia 2″ – To Tube 2-120

IC31 Increase Bushing 45-2.5mm Metric to 2-120

The IC31 is a driveshaft increase bushing transitioning from a 45-2.5mm metric tube (45mm OD x 2.5mm wall) to a 2-120 imperial tube (2.0" OD x 0.120" wall). Inside diameter is 1.575", outer diameter is 2.0".

Specifications

• Part Number: IC31
• From Tube: 45-2.5mm
• To Tube: 2-120
• Inside Diameter: 1.575"
• Outer Diameter: 2.0"

When fitting the IC31, confirm the existing tube is 45mm OD x 2.5mm wall (metric specification) and the target tube is 2.0" OD x 0.120" wall. The 1.575" ID corresponds to approximately 40mm (45mm OD minus 2 x 2.5mm wall), which is the metric tube bore expressed in imperial units. This bushing is designed specifically for metric-to-imperial tube diameter conversion in driveshaft rebuilds. Confirm the metric tube wall is exactly 2.5mm.

The IC31 is one of the smaller-diameter bushings in this series, transitioning from a 45mm metric tube to a 2.0" imperial tube. The 2.0" OD mates with the 2-120 tube spec. A different metric tube wall thickness will change the effective bore and the bushing will not seat correctly.

The IC31 ID of 1.575" and OD of 2.0" are the defining dimensions. Both the metric inner tube spec (45mm x 2.5mm) and the imperial outer tube spec (2-120) must be verified before ordering. This bushing is not interchangeable with other 2.0" OD bushings in this series that have different ID dimensions.
