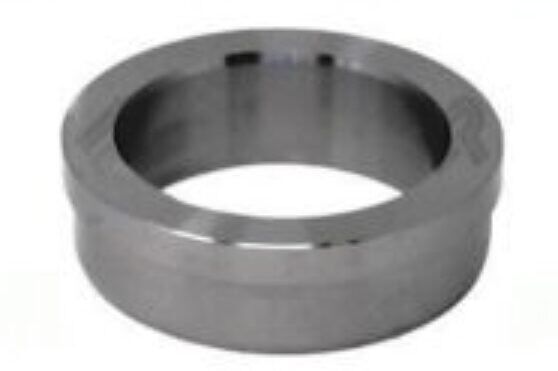

IC30-P – Increase Bushings – Outer Dia 3.5″ – Notes 0.32″ part length when pressed on

IC30-P -- Press-On Increase Bushing, 3.5 OD x 0.32" Length

The P suffix on IC30-P indicates a press-on design with a 0.32-inch part length after pressing. This short length suggests the IC30-P is used in very shallow yoke bores where a full-length bushing (like the 3-inch T-series bushings) would protrude into the tube clearance area. The 3.5-inch outer diameter matches the 3.5-inch bore yoke family.

• SKU: IC30-P
• Outer diameter: 3.5"
• Pressed length: 0.32"
• Design: Press-on (short engagement)

Short press-on bushings require precise bore diameter control. A 0.32-inch engagement length provides less interference area than a longer bushing -- the press fit interference per unit area must be correspondingly tighter. Verify the bore tolerance before pressing; if the bore is at the loose end of tolerance, the IC30-P may not develop sufficient retention force and will spin under torque.
