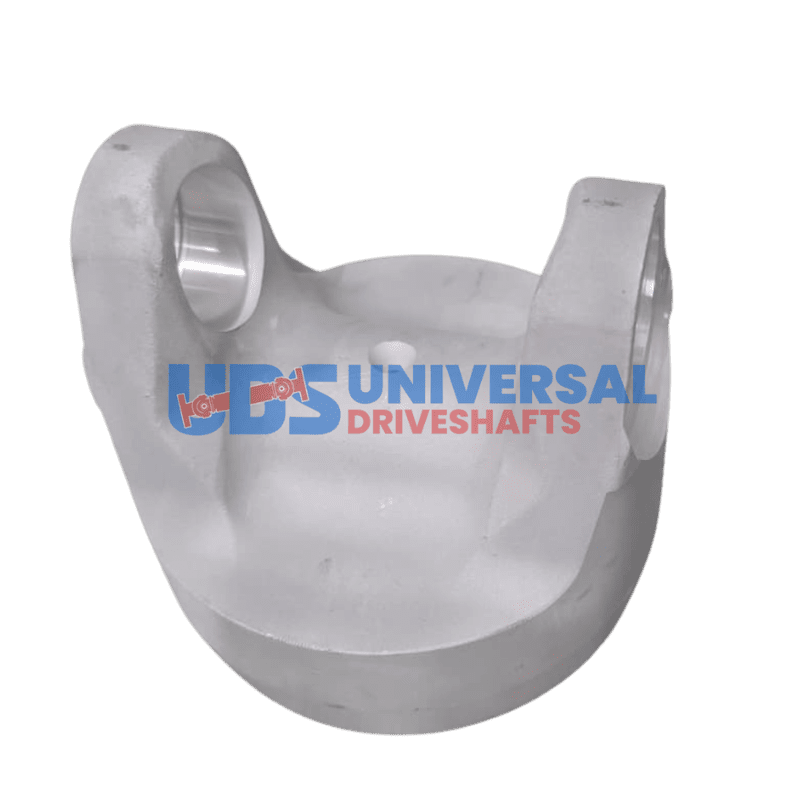

4826-506A Aluminum Weld Yoke 1480 , Fits : 5.000×0.125 Butt Dia: 4.757, Centerline To Weld: 3Inch
$43.78
6 in stock
17
People watching this product now!
Description
Weld yoke ATY1480-500, 1480. fits 4.757 x 0.125 tube | 3.000″” center-to-weld. 6061-T6 Aluminum. Tube OD must match butt diameter.
Full Description
If you're building or rebuilding a 1480 series driveshaft, the ATY1480-500 weld yoke is the tube-end connection. Butt diameter matches tube OD exactly.
ATY1480-500 Weld Yoke -- 1480 Series Aluminum Tube Specs
The 1480 series is the standard for heavy commercial Class 3-4 trucks and Dana heavy applications.
Dimensions on the ATY1480-500 weld yoke: fits 4.757 x 0.125 tube | 3.000"" center-to-weld. 6061-T6 Aluminum. The center-to-weld measurement is critical for calculating your driveshaft's compressed and extended working length.
Aluminum T6061 construction -- lighter rotating mass reduces driveline stress.
Key Features
- Series: 1480 -- heavy commercial Class 3-4 trucks and Dana heavy applications
- Tube fit: 4.757 x 0.125 -- butt diameter machined to this tube OD only
- Center-to-weld: 3.000"" -- factors into overall driveshaft length calculation
- Aluminum T6061 -- roughly 60% lighter than steel equivalent, corrosion resistant
- Note: 6061-T6 Aluminum
Specifications
- SKU: ATY1480-500
- Brand: UDS
- Series: 1480
- Material: Aluminum
- Tube Dia x Wall: 4.757 x 0.125
- Center UJ to Weld: 3.000""
- Notes: 6061-T6 Aluminum
Additional information
| Notes |
6061-T6 Aluminum |
|---|---|
| Series |
1480 |
| Material |
ALUMINUM |
| Tube dia |
5.000" |
| Center u j to weld |
3.000" |
| Brand |
UDS |
| Tube dia wall |
4.757 x 0.125 |
