90-53-31 – Stub Midship Shaft – 34 X 1.750 Splines – Bearing Dia 1.772″ – Tube Dia Wall 4.000X0.095
$108.26
1 in stock
10
People watching this product now!
Description

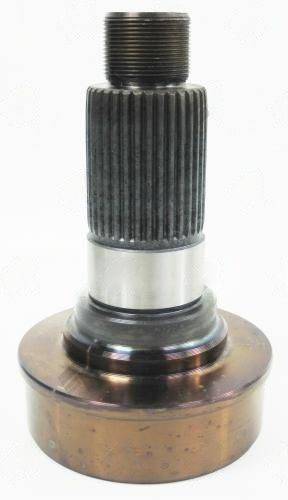

90-53-31 UDS splined midship shaft. Splines 34 X 1.750, fits 4.000 x 0.095″ tube, 1.772″ bearing journal. Verify slip yoke splines match before assembly.
Full Description
90-53-31 UDS Splined Midship Tube Shaft
The 90-53-31 is a splined midship tube shaft manufactured by UDS. In a two-piece driveshaft assembly, the midship shaft occupies the center section: one end carries the splined bore that accepts a slip yoke, and the other end connects to a U-joint. The shaft is welded into a driveshaft tube.
The spline specification is 34 X 1.750 — the slip yoke that slides onto this shaft must have an identical spline count and diameter. The shaft is designed to fit inside a 4.000 x 0.095" tube with a butt diameter of 3.821 inches at the weld joint. The end-to-weld dimension is 4.344 inches. The 1.772-inch bearing journal accepts the center support bearing — verify the bearing inner bore matches this diameter. Note: Spline has helix on tooth. End yokes will be a tight fit..
Specifications
- Part Number: 90-53-31
- Brand: UDS
- Bearing dia: 1.772
- Butt dia: 3.821
- End to weld: 4.344
- Notes: Spline has helix on tooth. End yokes will be a tight fit.
- Splines count dia: 34 X 1.750
- Splines length: 2.125
- Tube dia: 4.000
- Tube wall: 0.095"
- Style: FIXED
Fitment & Installation Notes
Verify the slip yoke splines match the 34 X 1.750 specification on the 90-53-31 before assembly. The tube OD must be 4.000 to accept this shaft correctly. If replacing a worn midship shaft, inspect the center support bearing simultaneously.
Browse related Stub & Midship Shafts for two-piece driveshaft applications.
Additional information
| Bearing dia | 1.772 |
|---|---|
| Butt dia | 3.821 |
| End to weld | 4.344 |
| Notes | Spline has helix on tooth. End yokes will be a tight fit. |
| Partn number | 90-53-31 |
| Splines count dia | 34 X 1.750 |
| Splines length | 2.125 |
| Tube dia | 4.000 |
| Tube wall | 0.095″ |
| Style | FIXED |
