8-40-91 – Stub Midship Shaft – 16 X 3.000 Splines – Butt Dia 3.984″ – Tube Dia Wall 4.500X0.259
$156.82
1 in stock
15
People watching this product now!
Description

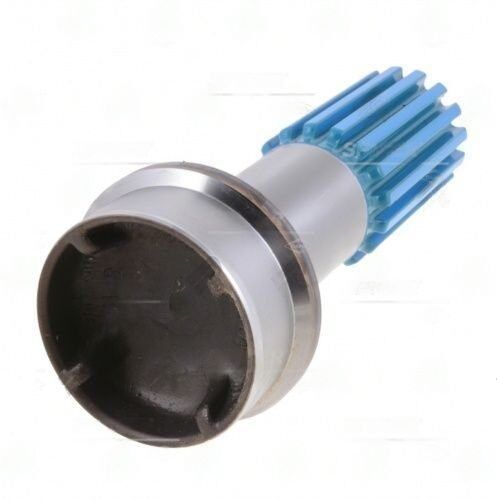

8-40-91 UDS splined midship shaft. Splines 16 X 3.000, fits 4.500″ x 0.259 tube, ” bearing journal. Verify slip yoke splines match before assembly.
Full Description
8-40-91 UDS Splined Midship Tube Shaft
The 8-40-91 is a splined midship tube shaft manufactured by UDS. In a two-piece driveshaft assembly, the midship shaft occupies the center section: one end carries the splined bore that accepts a slip yoke, and the other end connects to a U-joint. The shaft is welded into a driveshaft tube.
The spline specification is 16 X 3.000 — the slip yoke that slides onto this shaft must have an identical spline count and diameter. The shaft is designed to fit inside a 4.500" x 0.259 tube with a butt diameter of 3.984 inches at the weld joint. The end-to-weld dimension is 9.906 inches.
Specifications
- Part Number: 8-40-91
- Brand: UDS
- Butt dia: 3.984
- End to weld: 9.906
- Splines count dia: 16 X 3.000
- Splines length: 4.500
- Tube dia: 4.500"
- Tube wall: 0.259
- Style: Slip
Fitment & Installation Notes
Verify the slip yoke splines match the 16 X 3.000 specification on the 8-40-91 before assembly. The tube OD must be 4.500" to accept this shaft correctly. If replacing a worn midship shaft, inspect the center support bearing simultaneously.
Browse related Stub & Midship Shafts for two-piece driveshaft applications.
Additional information
| Butt dia | 3.984 |
|---|---|
| End to weld | 9.906 |
| Partn number | 8-40-91 |
| Splines count dia | 16 X 3.000 |
| Splines length | 4.500 |
| Tube dia | 4.500″ |
| Tube wall | 0.259 |
| Style | Slip |
