6-53-411 MIDSHIP STUB SHAFT Tube Shaft 1.950 x 38 spline, 4.000 X .134 tube CB App: 1.968 50MM

6-53-411 Stub/Midship Shaft -- 38 X 1.950 Spline, 1.968" Bearing Journal

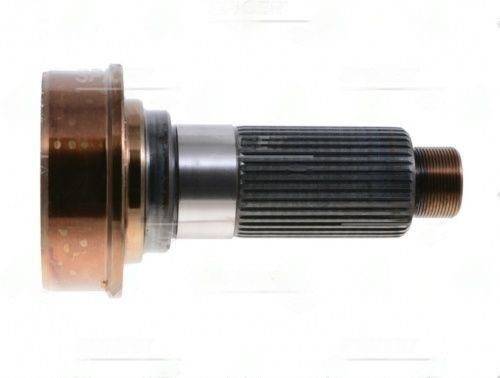

The 6-53-411 is a precision stub shaft designed for use as a midship or carrier-bearing-supported driveshaft section. The splined section features 38 X 1.950" splines at 2.844" engagement length, and the bearing journal diameter is 1.968" -- a critical measurement for center support bearing selection.

Dimensional Specifications

Bearing Journal & Center Support Selection

The 1.968" bearing journal diameter is the key dimension for selecting a matching center support bearing (CSB). The CSB bore must match this journal within 0.001" for a press or slip fit -- consult your bearing supplier for the appropriate fit class for your application. An undersized bore will damage the journal during installation; an oversized bore will allow the bearing to spin on the shaft.

Spline Interface

This shaft uses a 38 X 1.950 spline configuration with 2.844" engagement. Note: the splines on this shaft have a helical tooth form -- mating yokes will feel tight during assembly, which is normal. Do not force with excessive press load; use a plastic mallet or arbor press with a proper pilot.

Installation as a Midship Section

This is a fixed-style stub shaft (no slip travel -- used where a separate slip yoke is installed upstream). When assembling a two-piece driveshaft:

• Press the center support bearing onto the 1.968" journal -- use a bearing driver that contacts the inner race only.
• Mount the CSB bracket to the vehicle crossmember, checking for rubber isolator clearance.
• Align the forward and rear shaft sections so u-joint operating angles are equal and opposing.
• Torque the CSB bracket fasteners to specification and re-check alignment.

Note: Spline has helix on tooth. End yokes will be a tight fit.
