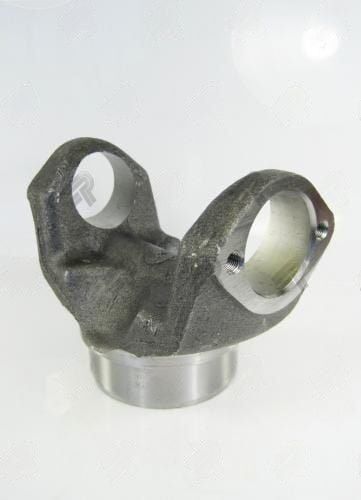

6.3-28-17 – Weld Yokes – 1760 Series – Butt Dia 3.734″ – Tube Dia Wall 4.095X0.180

The 6.3-28-17 is a robust weld yoke from the 1760 Series, specifically designed to handle demanding applications. This yoke connects your driveshaft to the transmission, transfer case, or differential, ensuring efficient power transfer and stability. With a butt diameter of 3.734 inches and a tube wall thickness of 0.180 inches, it strikes a balance between strength and weight, making it suitable for heavy-duty use.

One of the key features of the 6.3-28-17 is its center U-joint to weld measurement of 3.031 inches, which is critical for ensuring proper alignment and phasing with the opposite yoke. This yoke is constructed from high-quality steel, providing durability and reliability under stress. When comparing it to other series, the 1760 Series yoke stands out due to its larger dimensions and robust construction, which are essential for high-torque applications.

• Butt Diameter: 3.734 inches
• Tube Diameter Wall: 4.095 x 0.180 inches
• Center U-Joint to Weld: 3.031 inches
• Material: Steel
• Brand: Spicer

Using a yoke that doesn’t match the 1760 Series specifications can lead to misalignment, increased wear, and potential failure. Ensure you verify the spline engagement depth and never force spline entry during installation. The 6.3-28-17 is engineered to deliver reliable performance, making it a vital component in your driveline system.
