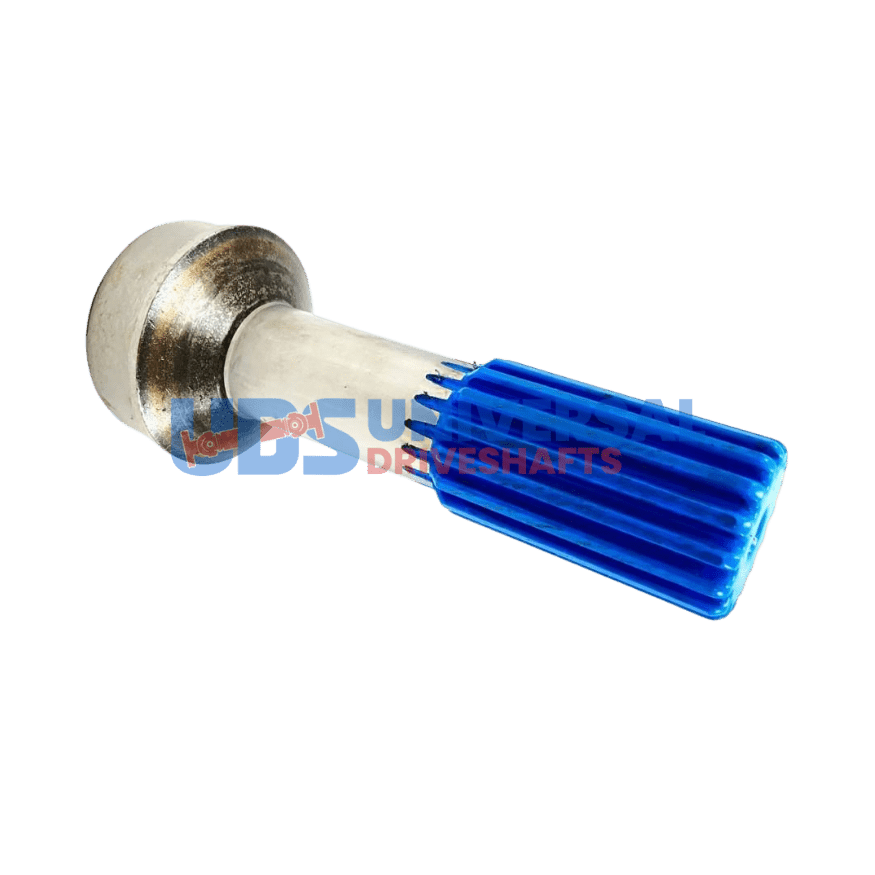

5-40-1191 Spline Stub Shaft Splines: 2.000×16 , Fits 3.500 X .134 Tube
$74.77
38 in stock
Description
5-40-1191 midship stub shaft with 16 x 2.000 spline and ” bearing journal for two-piece driveshaft center support bearing installations.
Full Description
Two-Piece Driveshaft Midship Component: 5-40-1191
Converting a single-piece driveshaft to a two-piece layout -- or rebuilding an existing multi-piece shaft -- requires a stub shaft with a precisely dimensioned carrier bearing journal. The 5-40-1191 delivers: " bearing journal, 16 x 2.000" splines (3.500" engagement), and a weld-ready 3.250" butt end for 3.500" tube.
Specifications
| Parameter | Value |
|---|---|
| Part Number | 5-40-1191 |
| Spline Count × Dia. | 16 x 2.000" |
| Spline Length | 3.500" |
| Bearing Journal Dia. | " |
| Butt Diameter | 3.250" |
| End-to-Weld | 7.562" |
| Compatible Tube | 3.500 OD x 0.134" wall |
| Style | SLIP |
| Brand | UDS |
Carrier Bearing Fitment
Center support bearings are specified by their bore ID. The 5-40-1191 presents a " journal -- look up a CSB with a bore ID equal to this value (or within bearing-fit tolerances: H7/k6 for a press fit, H7/h6 for a running fit). Pressing a CSB with the wrong bore ID will either score the journal surface or leave the bearing loose, both of which cause vibration and early failure.
Spline Engagement & Slip Travel
This slip-style stub shaft (telescoping splined section absorbs driveline length changes). With 3.500" of spline engagement, there is sufficient torque-carrying contact area for standard passenger and light truck applications. Grease the splines before assembly with a high-pressure NLGI 2 grease to prevent fretting corrosion under cyclic torque loads.
Assembly Notes
- Press CSB onto " journal using an inner-race driver.
- Weld tube to 3.250" butt end -- maintain full penetration and control heat input.
- Check TIR at journal after welding -- reject if above 0.003".
- Dynamic balance the completed shaft assembly.
Additional information
| Butt dia | 3.250 |
|---|---|
| End to weld | 7.562 |
| Partn number | 5-40-1191 |
| Splines count dia | 16 x 2.000 |
| Splines length | 3.500 |
| Tube dia | 3.500 |
| Tube wall | 0.134″ |
| Style | Slip |
