4803-341 Transmission Yoke 1480 Series 40038571 Splines count 32/34 Hub Diameter: 2.300 Dodge New Models 40041575
$78.15
30 in stock
Description

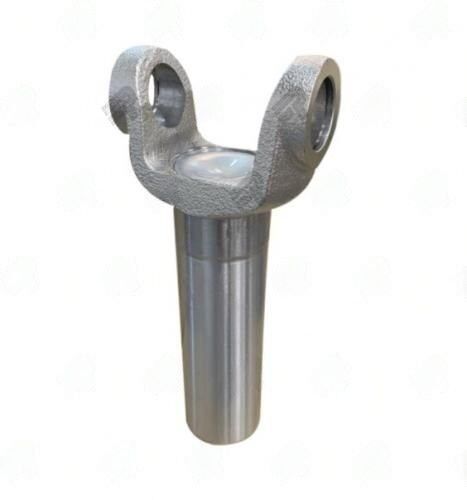

4803-341 1480 series Dodge transmission slip yoke, OEM 40038571, 32/34-spline x 1.625″ diameter, 9.551″ C/U-joint to end.
Full Description
OEM cross-reference 40038571 is the Dodge/Ram dealer part number for this 1480 series transmission yoke -- use this number to verify fitment in the OEM parts catalog before ordering. The Dodge 68RFE and 45RFE/545RFE automatic transmissions in 2003+ Ram 2500/3500 trucks use this yoke geometry.
- Series: 1480 -- 1.375" U-joint cap diameter, appropriate for HD Ram trucks with high towing capacity
- Splines: 32/34 x 1.625" -- verify your specific Ram transmission output before ordering
- C/U-joint to end: 9.551" -- long slip yoke providing significant travel for lifted Ram trucks
- Hub diameter: 2.300" -- must match the transmission tail housing output seal bore exactly
- No counterbore -- output shaft engagement provides centering
On Dodge Ram trucks equipped with 4WD and a BorgWarner transfer case, the front output yoke is separate from this transmission yoke. This part is the rear driveshaft transmission yoke. Confirm which end of the truck's driveline you are servicing before ordering. When replacing this yoke, also inspect the output shaft splines for wear -- a worn output shaft will destroy a new yoke in short order.
Additional information
| Center u joint to end | 9.551 |
|---|---|
| Counter bore dia | |
| Hub dia | 2.300 |
| Notes | Dodge trans slip yoke |
| Partn number | 4803-341 |
| Series | 1480 |
| Splines count dia | 32/34 X 1.750 |
