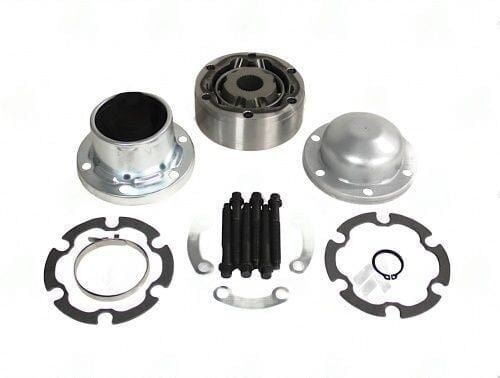

3652-1001 – CV Joint Kit – 24.5MM splines dia – Bolt Hole Dia 8.4mm – Inner Race Width 37.5mm
$157.69
1 in stock
20
People watching this product now!
Description
3652-1001 UDS driveshaft component. Bolt hole count: 6; Bolt hole dia: 8.4mm; Boot cap part: INCLUDED.
Full Description
3652-1001 – CV Joint Kit – 24.5MM splines dia – Bolt Hole Di
The 3652-1001 is a UDS driveshaft component. 3652-1001 – CV Joint Kit – 24.5MM splines dia – Bolt Hole Dia 8.4mm – Inner Race Width 37.5mm.
Bolt hole count: 6 Bolt hole dia: 8.4mm Boot cap part: INCLUDED Gasket: INCLUDED Inner race width: 37.5mm Outer race width: 37mm Splines count: 30 Splines dia: 24.5MM Outer dia: 100MM Notes: Equinox/Torrent Equinox/Torrent.
Specifications
- Part Number: 3652-1001
- Brand: UDS
- Bolt hole count: 6
- Bolt hole dia: 8.4mm
- Boot cap part: INCLUDED
- Gasket: INCLUDED
- Inner race width: 37.5mm
- Outer race width: 37mm
- Splines count: 30
- Splines dia: 24.5MM
- Outer dia: 100MM
- Notes: Equinox/Torrent
Fitment & Installation Notes
Verify all dimensions listed in the specifications against your application before ordering the 3652-1001. Confirm part number compatibility with your driveshaft assembly.
Browse related CV Joint Kits from Universal Driveshafts.
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 8.4mm |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 37.5mm |
| Outer race width | 37mm |
| Splines count | 30 |
| Splines dia | 24.5MM |
| Outer dia | 100MM |
| Notes | Equinox/Torrent |
| Partn number | 3652-1001 |
