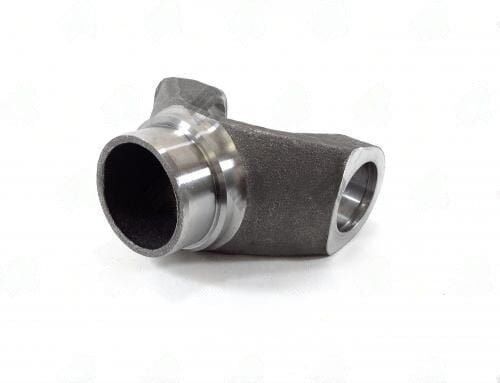

3526-201 – Weld Yokes – 1350 Series – Butt Dia 1.766″ – Tube Dia Wall 2.000X0.120
$35.20
1 in stock
Description
1350-series steel weld yoke for 2.000×0.120 tube with extra-thick ears, 1.766″ butt diameter, and 2.125″ CL-to-weld.
Full Description
- Part Number
- 3526-201
- Series
- 1350
- Tube Diameter x Wall
- 2.000" x 0.120"
- Butt Diameter
- 1.766"
- Centerline to Weld
- 2.125"
- Special Feature
- Extra thick ears
- Material
- Steel
The 3526-201 is distinguished from the 3-28-777 by two factors: extra-thick yoke ears and a longer CL-to-weld (2.125" versus 1.750"). The extra-thick ears increase the load-bearing surface between the U-joint cap and the yoke ear bore -- a meaningful improvement on short, high-torque driveshaft stubs where impact loading from sudden engagement or driveline shock (wheelspin to hookup transitions) concentrates stress at the cap-to-ear bearing contact zone. Standard-thickness ears on a 1350 joint in this 2.000" tube application occasionally show premature cap-bore wear in competition environments; the extra-thick ear design addresses this failure mode directly.
The 0.375" longer CL-to-weld moves the weld further from the joint ears, which is also beneficial -- a weld bead that propagates heat closer than 1.500" to a U-joint ear bore can reduce the bore's hardness below the minimum required for needle bearing retention. This weld yoke is the correct choice for any 1350-series application at 2.000" tube where sustained high-torque or shock-load service is expected.
Additional information
| Butt dia | 1.766 |
|---|---|
| Center u j to weld | 2.125 |
| Material | STEEL |
| Notes | EXTRA THICK EARS |
| Partn number | 3526-201 |
| Series | 1350 |
| Tube dia wall | 2.000X0.120″ |
| Brand | UDS |
