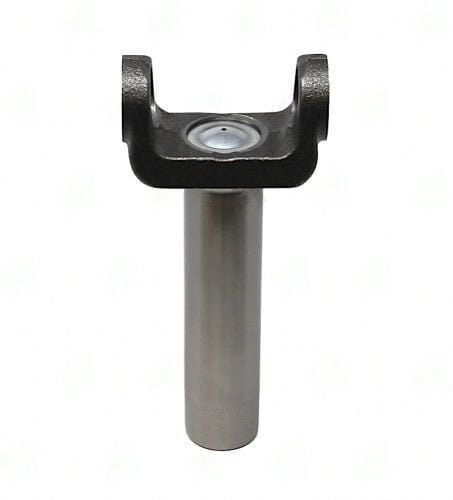

3503-286 – Transmission Yokes – 1350 Series – 27/28 X 1.220 Splines – 1.600″ Hub Dia
$96.59
1 in stock
Description
3503-286 1350 series transmission yoke without damper, 27/28-spline x 1.220″ diameter, 7.930″ C/U-joint to end, 2.400″ counterbore.
Full Description
3503-286 -- 1350 Series Yoke, No Damper, 2.400" Counterbore, 27/28-Spline
The "No Damper" note on 3503-286 indicates this yoke is used in applications where the OE driveshaft carried a vibration damper mass on the yoke body -- a counterweight welded or pressed onto the shaft to reduce torsional resonance at cruise speed. The 3503-286 retains the large 2.400" counterbore that accommodates the damper retainer ring, but is supplied without the damper mass itself.
The 2.400" counterbore is significantly larger than the 1.300" on 3503-286TO -- this dimensional difference reflects the presence of the damper mounting feature in the original housing design. Do not substitute 3503-286TO (without the large counterbore) if the transmission housing has a damper retainer ring feature -- the smaller counterbore will not clear the retainer ring and the yoke will not seat fully. The 7.930" C/U-joint to end and 1.600" hub are identical between the two variants.
Additional information
| Center u joint to end | 7.930 |
|---|---|
| Counter bore dia | 2.400 |
| Hub dia | 1.600 |
| Notes | No Dampner |
| Partn number | 3503-286 |
| Series | 1350 |
| Splines count dia | 27/28 X 1.220 |
