3326-506A – Weld Yokes – 1330 Series – Butt Dia 4.757″ – Tube Dia Wall 5.000X0.125
$66.63
1 in stock
Description

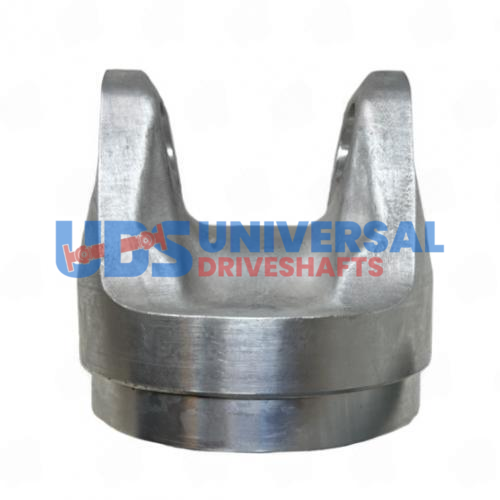

1330-series aluminum weld yoke for 5.000×0.125 tube with 4.757″ butt diameter and 3.000″ CL-to-weld. 0.125″ longer than 3326-50A.
Full Description
Q: Is the 3326-506A the same as the 3326-50A except for CL-to-weld?
A: Yes -- identical in series (1330), tube spec (5.000"x0.125"), butt diameter (4.757"), and material (aluminum). The only difference is CL-to-weld: 3.000" versus 2.875". Select based on required total shaft length: the 3326-506A produces a shaft 0.125" shorter than the 3326-50A for the same tube cut.
Q: Can I mix a 3326-50A at one end and a 3326-506A at the other end of the same shaft?
A: Yes, technically -- both ends use the same 4.757" butt and 1330-series joints. The total assembled shaft length will be the sum of both CLs plus the tube length. Calculate the total carefully to ensure the correct assembled length: (2.875" + tube length + 3.000") = required shaft length. The 0.125" difference in CL will offset the tube cut required.
Q: What U-joint is required at both ends of this assembly?
A: 1330-series at 1.062" cap OD with 1330-specific cup depth. Spicer 5-3250X or equivalent. Both end yokes use the same joint series for a consistent-strength assembly. This weld yoke should be paired with matching 1330-series end yokes at the pinion for full series alignment.
Additional information
| Butt dia | 4.757 |
|---|---|
| Center u j to weld | 3.000″ |
| Material | ALUMINUM |
| Partn number | 3326-506A |
| Series | 1330 |
| Tube dia wall | 5.000X0.125 |
| Brand | UDS |
