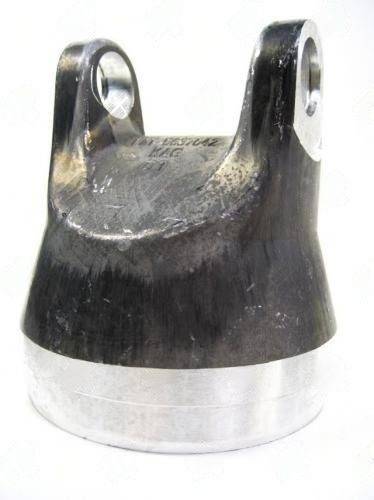

3326-501A – Weld Yokes – 1330 Series – Butt Dia 4.888″ – Tube Dia Wall 5.000X0.063

Maximum Weight Reduction: The 3326-501A represents the lightest combination in this catalog: 1330 series (smallest cap in this aluminum family) paired with 5.000"x0.063" ultra-thin-wall aluminum tube. This assembly is appropriate only for purpose-built competition vehicles where torsional loads are controlled and weight is the overriding design criterion. Do not use for street vehicles, towing applications, or any service where unexpected overloads (wheelspin, hard shifting) can occur.

The 3326-501A mirrors the 4126-501A and 4826-45A specification pattern for ultra-thin-wall aluminum: 5.000" OD, 0.063" wall, 4.888" butt diameter, 4.110" CL-to-weld -- the only difference being the 1330-series (smaller cap) versus 1410 or 1480 at the joint end. The 4.110" CL-to-weld is critical for safe welding at 0.063" wall -- as detailed earlier, the heat-affected zone boundary must remain more than 3.000" from the U-joint journal area to preserve ear bore hardness. At 4.110" CL, this requirement is met with margin.

For competition applications, specify this weld yoke only after confirming that the maximum driveshaft torque (peak engine torque multiplied by any applicable gear reduction) does not exceed the 1330-series rated torque for the specific joint chosen. If there is any doubt, use the 1350-series 3526-501A at the same tube spec -- the weight penalty is minimal and the torque capacity margin is substantially increased.
