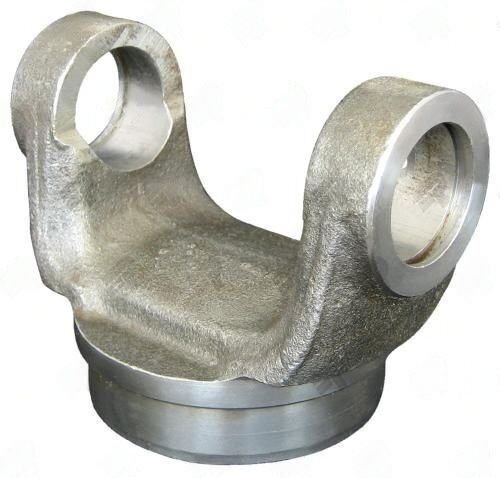

3326-272 – Weld Yokes – 1330 Series – Butt Dia 2.594″ – Tube Dia Wall 2.750X0.083
$31.05
13
People watching this product now!
Description
1330 series Steel 3326-272 weld yoke. fits 2.750X0.083 tube | 2.594″ butt dia | 1.719″ center-to-weld. Weld-on tube end connection.
Full Description
Weld yoke fit is determined by tube OD. The 3326-272 is machined to accept a specific tube diameter -- butt it up, get it square, weld it. That simple, that exacting.
3326-272 Weld Yoke -- Dimensions & Fitment
The 3326-272 weld yoke: fits 2.750X0.083 tube | 2.594" butt dia | 1.719" center-to-weld.
The 1330 series is the standard for light-to-medium duty GM half-ton and Dodge Dakota platforms. Steel DOM-compatible -- standard weld prep, full-penetration weld recommended. Center-to-weld dimension determines how much of your total shaft length is consumed by this end.
Key Features
- Series: 1330 -- light-to-medium duty GM half-ton and Dodge Dakota platforms
- Tube fit: 2.750X0.083 -- butt diameter machined to this tube OD only
- Butt diameter: 2.594" -- slides over tube OD for weld prep
- Center-to-weld: 1.719" -- factors into overall driveshaft length calculation
- Steel construction -- standard weld-compatible material
Specifications
- SKU: 3326-272
- Brand: UDS
- Series: 1330
- Material: Steel
- Tube Dia x Wall: 2.750X0.083
- Butt Dia: 2.594"
- Center UJ to Weld: 1.719"
Additional information
| Butt dia |
2.594 |
|---|---|
| Center u j to weld |
1.719 |
| Material |
STEEL |
| Partn number |
3326-272 |
| Series |
1330 |
| Tube dia wall |
2.750X0.083 |
| Brand |
UDS |
