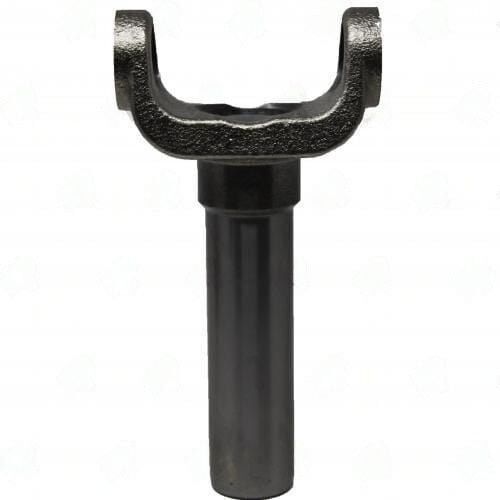

3303-251 – Transmission Yokes – 1330 Series – 24/25 X 1.113 Splines – 1.375″ Hub Dia
$69.67
1 in stock
Description
3303-251 1330 series nickel-plated transmission yoke, 24/25-spline x 1.083″ diameter, 6.860″ centerline to U-joint, 1.375″ hub.
Full Description
- Part Number
- 3303-251
- Series
- 1330
- Finish
- Nickel Plated
- Splines
- 24/25 x 1.083"
- C/U-joint to End
- 6.860"
- Hub Diameter
- 1.375"
- Counterbore
- None
The 24/25-spline x 1.083" profile is a compact output specification found on smaller domestic and import transmissions -- similar to the 23/25 x 1.083" Mazda/early Mustang profile (2603-25) but with a different spline count. Confirm the exact count and pitch diameter against the transmission output shaft before ordering. The 1.375" hub OD is among the smaller dimensions in the 1330 series family.
Nickel plating provides corrosion resistance for salt-belt applications. The 6.860" C/U-joint to end accommodates mid-length driveshaft applications. No counterbore -- hub centering only. This part covers compact and mid-size domestic transmission applications where the 1330 series is the OEM standard. See also: transmission yoke category for related spline specifications.
Additional information
| Center u joint to end | 6.860 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.375 |
| Notes | Nickel Plated |
| Partn number | 3303-251 |
| Series | 1330 |
| Splines count dia | 24/25 X 1.113 |
