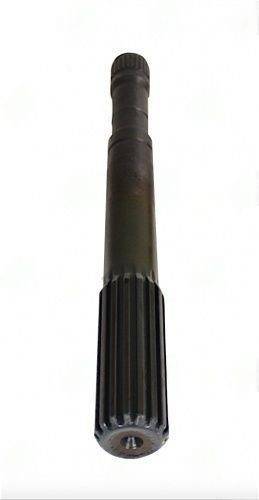

3181-161 – Stub & Midship Shaft – 16 X 1.375 Splines – Splines Length 7.375″ – End To Weld 11.750
$188.26
2 in stock
Description
3181-161 midship stub shaft with 16 X 1.375 spline and ” bearing journal for two-piece driveshaft center support bearing installations.
Full Description
Center Support Shaft Section -- 3181-161
Multi-piece driveshafts depend on a precision midship stub shaft to maintain alignment between the carrier bearing and the propshaft tube. The 3181-161 provides a " bearing journal, a 16 X 1.375" spline section (7.375" long), and a N/A" butt diameter for N/A" tube welding -- everything needed for a correct two-piece shaft assembly.
Complete Specifications
| Spec | Value |
|---|---|
| SKU | 3181-161 |
| Splines | 16 X 1.375" |
| Spline Length | 7.375" |
| Bearing Journal | " |
| Butt Dia. | N/A" |
| End to Weld | 11.750" |
| Tube Size | N/A OD x N/A wall |
| Style | CVJ |
| Notes | Dual spline stub for 3152-1001 CVJ on 1 end and standard 16/1.375"" spline on the other end used with: 3133-161 |
Why the Bearing Journal Dimension is Critical
The center support bearing must press onto a journal that is within a few ten-thousandths of an inch of the bearing bore. The 3181-161's journal is ground to " -- use this measurement to look up the correct CSB part number. A mismatched bearing diameter is the most common cause of premature CSB failure and driveshaft vibration.
Tube Welding
The butt end accepts N/A OD tubing. Clean the tube bore and yoke butt before fitting. Tack at four positions, check runout, then complete the weld. Post-weld TIR at the bearing journal should be below 0.003" before the CSB is pressed on.
Style: Cvj
This is a slip-style stub shaft (telescoping splined section absorbs driveline length changes). Match the style to your driveshaft layout -- using a fixed stub where a slip stub is required will bind under suspension travel and can fracture the shaft.
Dual spline stub for 3152-1001 CVJ on 1 end and standard 16/1.375"" spline on the other end used with: 3133-161
Additional information
| Butt dia | N/A |
|---|---|
| End to weld | 11.750 |
| Notes | Dual spline stub for 3152-1001 CVJ on 1 end and standard 16/1.375″” spline on the other end used with: 3133-161 |
| Partn number | 3181-161 |
| Splines count dia | 16 X 1.375 |
| Splines length | 7.375 |
| Tube dia | N/A |
| Tube wall | N/A |
| Style | CVJ |
