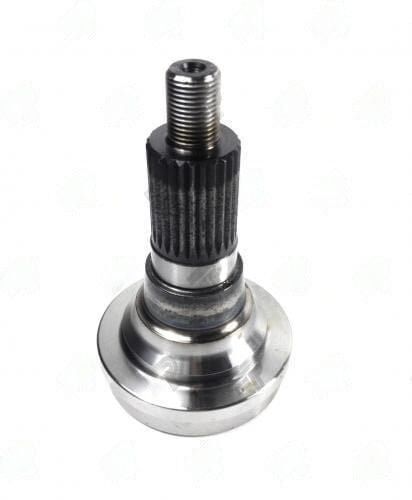

3153-302 – Stub Midship Shaft – 26 X 1.125 Splines – Bearing Dia 1.181″ – Butt Dia 2.844

3153-302 Stub/Midship Shaft -- 26 X 1.125 Spline, 1.181" Bearing Journal

The 3153-302 is a precision stub shaft designed for use as a midship or carrier-bearing-supported driveshaft section. The splined section features 26 X 1.125" splines at 1.375" engagement length, and the bearing journal diameter is 1.181" -- a critical measurement for center support bearing selection.

Dimensional Specifications

Bearing Journal & Center Support Selection

The 1.181" bearing journal diameter is the key dimension for selecting a matching center support bearing (CSB). The CSB bore must match this journal within 0.001" for a press or slip fit -- consult your bearing supplier for the appropriate fit class for your application. An undersized bore will damage the journal during installation; an oversized bore will allow the bearing to spin on the shaft.

Spline Interface

This shaft uses a 26 X 1.125 spline configuration with 1.375" engagement. Ensure the mating slip yoke or companion spline matches both the count and diameter specification before assembly.

Installation as a Midship Section

This is a fixed-style stub shaft (no slip travel -- used where a separate slip yoke is installed upstream). When assembling a two-piece driveshaft:

• Press the center support bearing onto the 1.181" journal -- use a bearing driver that contacts the inner race only.
• Mount the CSB bracket to the vehicle crossmember, checking for rubber isolator clearance.
• Align the forward and rear shaft sections so u-joint operating angles are equal and opposing.
• Torque the CSB bracket fasteners to specification and re-check alignment.

Note: USE WITH : 3104-264 AND : 858018 nut
