3153-253 – Stub Midship Shaft – 25 X 1.066 Splines – Bearing Dia 1.181″ – Butt Dia 2.344

3153-253 Stub/Midship Shaft -- 25 X 1.066 Spline, 1.181" Bearing Journal

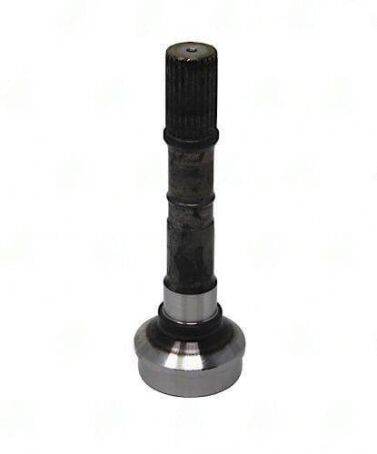

The 3153-253 is a precision stub shaft designed for use as a midship or carrier-bearing-supported driveshaft section. The splined section features 25 X 1.066" splines at 1.481" engagement length, and the bearing journal diameter is 1.181" -- a critical measurement for center support bearing selection.

Dimensional Specifications

Bearing Journal & Center Support Selection

The 1.181" bearing journal diameter is the key dimension for selecting a matching center support bearing (CSB). The CSB bore must match this journal within 0.001" for a press or slip fit -- consult your bearing supplier for the appropriate fit class for your application. An undersized bore will damage the journal during installation; an oversized bore will allow the bearing to spin on the shaft.

Spline Interface

This shaft uses a 25 X 1.066 spline configuration with 1.481" engagement. Ensure the mating slip yoke or companion spline matches both the count and diameter specification before assembly.

Installation as a Midship Section

This is a slip-style stub shaft (telescoping splined section absorbs driveline length changes). When assembling a two-piece driveshaft:

• Press the center support bearing onto the 1.181" journal -- use a bearing driver that contacts the inner race only.
• Mount the CSB bracket to the vehicle crossmember, checking for rubber isolator clearance.
• Align the forward and rear shaft sections so u-joint operating angles are equal and opposing.
• Torque the CSB bracket fasteners to specification and re-check alignment.

Note: plunge cvj set up with 3126-253 cvj weld yoke
