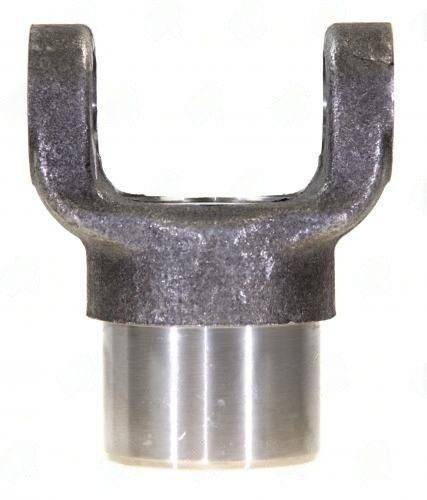

3103-11 – Transmission Yokes – 1310 Series – 10 x 1.375 Splines – 2.125″ Hub Dia
$76.89
1 in stock
Description
1310-series marine jet drive transmission yoke with 10×1.375 splines, 2.125″ hub, 1.000″ counterbore, and 3.375″ center-to-end.
Full Description
- Part Number
- 3103-11
- Series
- 1310 (1.062" U-joint cap diameter)
- Splines
- 10 x 1.375"
- Hub Diameter
- 2.125"
- Counterbore Diameter
- 1.000"
- Center U-Joint to End
- 3.375"
- Application
- Standard jet drive (marine)
The 3103-11 sits between the short (3103-10) and medium-long (3103-12) jet drive transmission yokes at 3.375" center-to-end. The 1.000" counterbore is 0.125" larger than the 3103-10's 0.875" bore -- this difference corresponds to different jet pump coupling pilot ODs used by different pump manufacturers. Measure the pump input coupling pilot before ordering rather than guessing. The 2.125" hub OD is standard across all three jet-drive yoke variants (3103-10, 11, 12) and interfaces with the same pump input bore. Replace the 1310-series U-joint and yoke together when evidence of corrosion is found in the needle bearing bores -- marine environments cause accelerated pitting that makes individual component replacement less cost-effective than a complete joint assembly.
Additional information
| Center u joint to end | 3.375 |
|---|---|
| Counter bore dia | 1.000 |
| Hub dia | 2.125 |
| Notes | Used in boat applications, Fits onto standard jet drive |
| Partn number | 3103-11 |
| Series | 1310 |
| Splines count dia | 10 x 1.375 |
