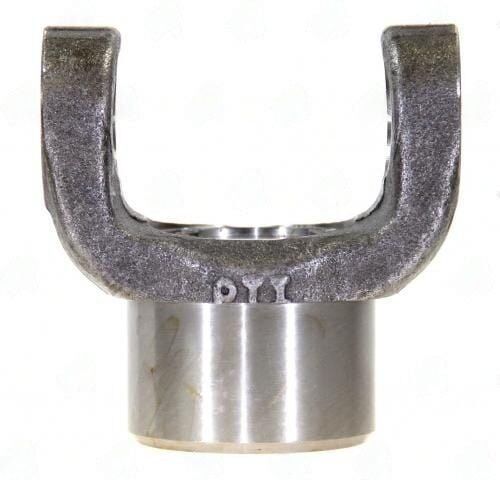

3103-10 – Transmission Yokes – 1310 Series – 10 x 1.375 Splines – 2.125″ Hub Dia
$69.62
15
People watching this product now!
Description
3103-10 Transmission Yoke — 1310 series, 10 x 1.375 spline | 2.125″ hub | 2.750″ CJ-to-end. Used in boat applications, Fits onto standard jet drive. Proven direct replacement.
Full Description
The 3103-10 transmission yoke is the connection between the gearbox tailshaft and the front of the driveshaft. It splines onto the transmission output shaft and carries the front u-joint of the driveshaft. For 1310 series applications, the spline count and hub diameter are the two specs that determine whether this part fits your tailshaft correctly.
3103-10 Transmission Yoke — 1310 Series Specs & Tailshaft Fit
The 1310 series covers light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500. The 3103-10 transmission yoke specs: 10 x 1.375 spline | 2.125" hub | 2.750" CJ-to-end. Compatible with: Used in boat applications, Fits onto standard jet drive. Hub diameter determines engagement depth on the tailshaft — if the hub is too short, the splines don't fully engage. CJ-to-end affects driveshaft working length.
After a transmission rebuild or swap, confirm the tailshaft spline count hasn't changed before installing the 3103-10 transmission yoke. Not all 1310 series transmissions use the same output spline across all years and configurations. Count the splines on the actual shaft.
Key Features
- Series: 1310 — light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500
- Spline: 10 x 1.375 — must match transmission tailshaft
- Hub dia: 2.125" — determines spline engagement depth
- CJ-to-end: 2.750" — affects driveshaft working length
- Compatible with: Used in boat applications, Fits onto standard jet drive
- Brand: UDS
Specifications
- SKU: 3103-10
- Brand: UDS
- Series: 1310
- Spline: 10 x 1.375
- Hub Dia: 2.125"
- CJ to End: 2.750"
- Notes: Used in boat applications, Fits onto standard jet drive
Additional information
| Center u joint to end |
2.750 |
|---|---|
| Counter bore dia |
1.125 |
| Hub dia |
2.125 |
| Notes |
Used in boat applications, Fits onto standard jet drive |
| Partn number |
3103-10 |
| Series |
1310 |
| Splines count dia |
10 x 1.375 |
