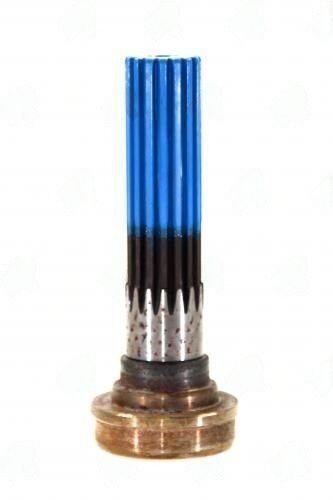

3-53-1031 Midship Tube Shaft 1.500 x 16 spline, 3.000 X .083 TUBE
$36.74
+50 in stock
Description
3-53-1031 midship stub shaft with 16 x 1.500 spline and 1.574″ bearing journal for two-piece driveshaft center support bearing installations.
Full Description
Two-Piece Driveshaft Midship Component: 3-53-1031
Converting a single-piece driveshaft to a two-piece layout -- or rebuilding an existing multi-piece shaft -- requires a stub shaft with a precisely dimensioned carrier bearing journal. The 3-53-1031 delivers: 1.574" bearing journal, 16 x 1.500" splines (4.438" engagement), and a weld-ready 2.844" butt end for 3.000" tube.
Specifications
| Parameter | Value |
|---|---|
| Part Number | 3-53-1031 |
| Spline Count × Dia. | 16 x 1.500" |
| Spline Length | 4.438" |
| Bearing Journal Dia. | 1.574" |
| Butt Diameter | 2.844" |
| End-to-Weld | 7.062" |
| Compatible Tube | 3.000 OD x 0.083" wall |
| Style | SLIP |
| Brand | UDS |
Carrier Bearing Fitment
Center support bearings are specified by their bore ID. The 3-53-1031 presents a 1.574" journal -- look up a CSB with a bore ID equal to this value (or within bearing-fit tolerances: H7/k6 for a press fit, H7/h6 for a running fit). Pressing a CSB with the wrong bore ID will either score the journal surface or leave the bearing loose, both of which cause vibration and early failure.
Spline Engagement & Slip Travel
This slip-style stub shaft (telescoping splined section absorbs driveline length changes). With 4.438" of spline engagement, there is sufficient torque-carrying contact area for standard passenger and light truck applications. Grease the splines before assembly with a high-pressure NLGI 2 grease to prevent fretting corrosion under cyclic torque loads.
Assembly Notes
- Press CSB onto 1.574" journal using an inner-race driver.
- Weld tube to 2.844" butt end -- maintain full penetration and control heat input.
- Check TIR at journal after welding -- reject if above 0.003".
- Dynamic balance the completed shaft assembly.
Additional information
| Bearing dia | 1.574 |
|---|---|
| Butt dia | 2.844 |
| End to weld | 7.062 |
| Partn number | 3-53-1031 |
| Splines count dia | 16 x 1.500 |
| Splines length | 4.438 |
| Tube dia | 3.000 |
| Tube wall | 0.083″ |
| Style | Slip |
