3-4-8511-1 End Yoke – Splined Bore 1350 Series, Strap Style, 1.500×10 Spline, 2.156 Hub
$69.21
+50 in stock
17
People watching this product now!
Description
3-4-8511-1 end yoke, 1350 series strap style, 1.500″x10 spline, 2.156″ hub dia, 3.766″ CJ-to-end, 2.000″ through-hole. Verify spline count and hub diameter.
Full Description

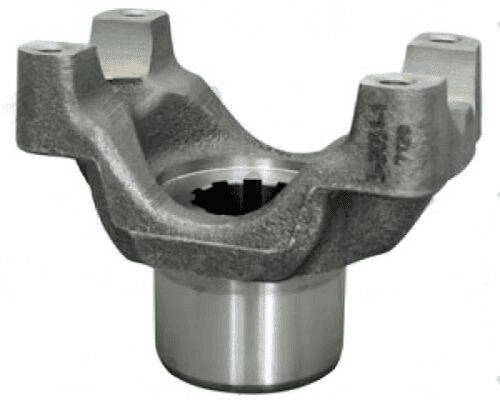

3-4-8511-1 End Yoke 1350 Series Strap Style 1.500x10 Spline 2.156 Hub
The 3-4-8511-1 is a 1350 series strap-style (BS) end yoke with a 1.500" spline diameter and 10-spline bore. The hub diameter is 2.156", the CJ to end dimension is 3.766", and the through-hole is 2.000". This yoke is distinguished from the 3-4-2231-1 and 3-4-1501-1 by its 2.156" hub diameter and 3.766" CJ-to-end length — confirm these dimensions match the application requirement.
Specifications
- Part Number: 3-4-8511-1
- Series: 1350
- Style: BS (Strap)
- Spline Diameter: 1.500"
- Spline Count: 10
- Hub Diameter: 2.156"
- CJ to End: 3.766"
- Through Hole: 2.000"
When fitting the 3-4-8511-1, verify the output shaft spline count is 10 and spline diameter is 1.500". The 2.156" hub diameter and 2.000" through-hole must be confirmed against the housing bore and any retaining collar diameter. The 3.766" CJ-to-end is shorter than the 3-4-2231-1 (3.905") — select based on the required working length at this driveline connection.
The 3-4-8511-1 uses bolt-strap U-joint retention; the mating U-joint must be strap-style compatible in the 1350 series. Cross-reference CJ-to-end length against other 1350 strap yokes (3-4-2231-1 at 3.905", 3-4-1501-1 at 3.530") when selecting the correct yoke for the installation envelope. Count output shaft splines before ordering.
Additional information
| Cj to end | 3.766 |
|---|---|
| Hub dia | 2.156 |
| Partn number | 3-4-8511-1 |
| Series | 1350 |
| Splines count | 10 |
| Splines dia | 1.500″ |
| Style | BS |
| Through hole | 2.000″ |
