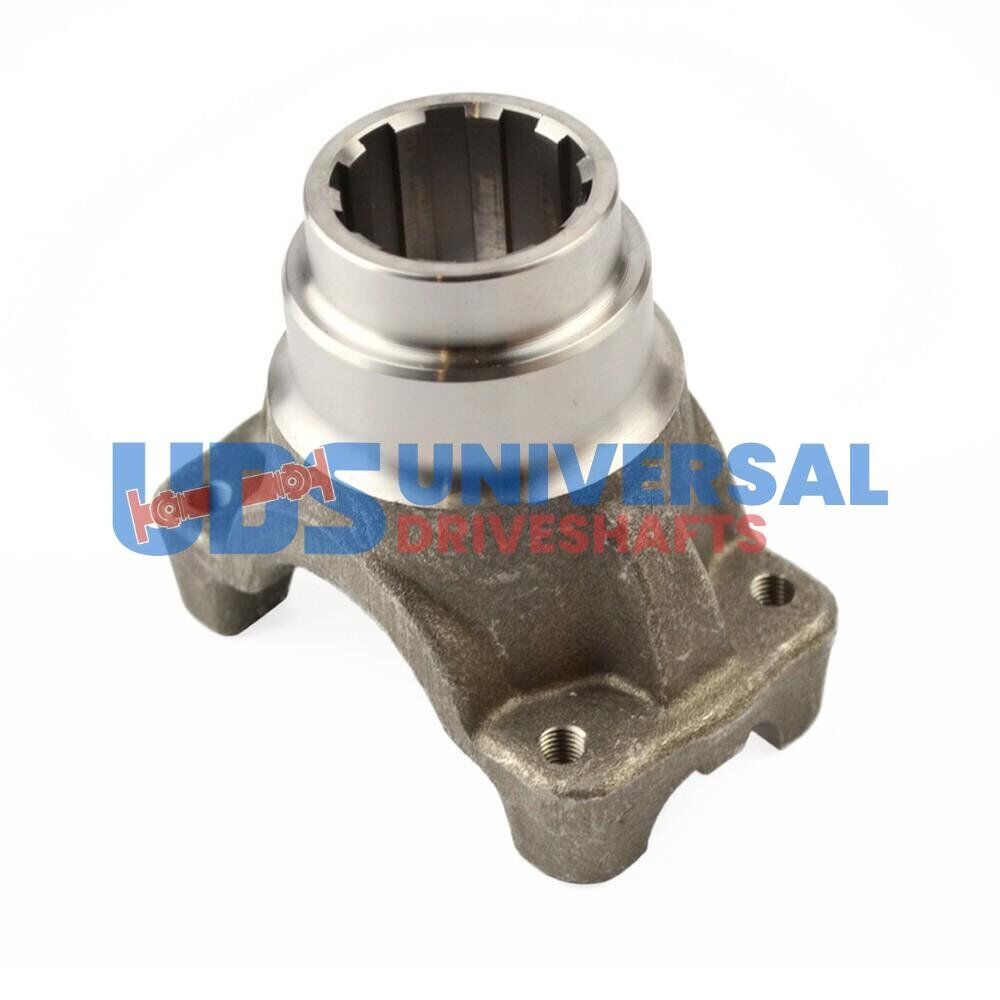

3-4-13881-1 End Yoke Spicer – Splined Bore 1350 Series, Strap Style, 1.500×10 Spline, 1.810 Hub
$67.81
+50 in stock
12
People watching this product now!
Description
3-4-13881-1 Spicer end yoke, 1350 series strap style, 1.500″x10 spline, 2.156″ hub dia, 3.695″ CJ-to-end. Count output shaft splines before ordering.
Full Description
3-4-13881-1 Spicer End Yoke 1350 Series Strap Style 1.500x10 Spline 1.810 Hub
The 3-4-13881-1 is a Spicer 1350 series strap-style (BS) end yoke with a 1.500" spline diameter and 10-spline bore. The hub diameter is 2.156" with a 1.810" nominal hub reference noted in the product name, the CJ to end dimension is 3.695", and the through-hole is 2.000". The Spicer sourcing makes this a direct OEM-equivalent reference for applications calling out Spicer 1350 series strap yokes at this hub and length specification.
Specifications
- Part Number: 3-4-13881-1
- Series: 1350
- Style: BS (Strap)
- Spline Diameter: 1.500"
- Spline Count: 10
- Hub Diameter: 2.156"
- CJ to End: 3.695"
- Through Hole: 2.000"
When fitting the 3-4-13881-1, verify the output shaft spline count is 10 and spline diameter is 1.500". The CJ-to-end of 3.695" positions this yoke between the 3-4-8511-1 (3.766") and 3-4-1501-1 (3.530") in terms of working length — select based on the specific dimensional requirement of the driveline installation. The 2.000" through-hole must clear any retaining hardware on the output shaft end.
As a Spicer part, the 3-4-13881-1 is cross-referenceable against OEM Spicer 1350 series strap yoke catalogs. Strap-style retention requires a compatible U-joint — snap-ring style U-joints will not seat correctly in strap-bore yoke ears. Confirm both spline count and 1.500" spline diameter against the output shaft before ordering the 3-4-13881-1.
Additional information
| Cj to end | 3.695 |
|---|---|
| Hub dia | 2.156 |
| Partn number | 3-4-13881-1 |
| Series | 1350 |
| Splines count | 10 |
| Splines dia | 1.500″ |
| Style | BS |
| Through hole | 2.000″ |
