Weld Tube Yoke 1410 Fits 3.000 X 0.095 Butt Dia: 2.821 – 3-28-267

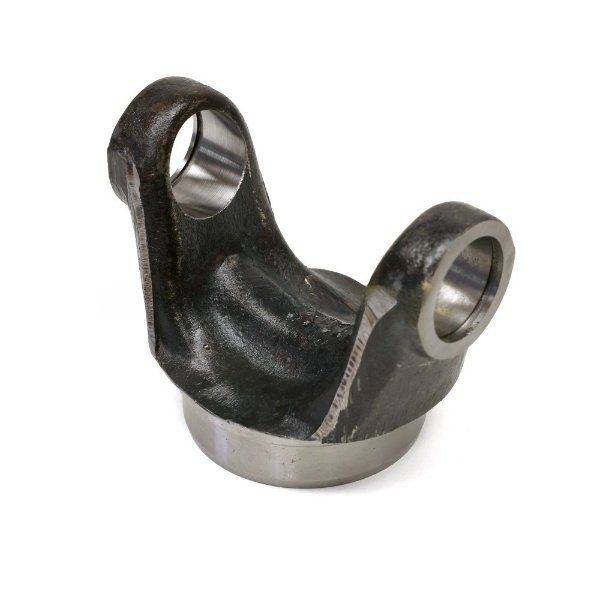

3-28-267 UDS 1410 Series Weld Tube Yoke 3.000 x 0.095

The 3-28-267 is a UDS 1410 series weld tube yoke designed for steel driveshaft tube with a 3.000" OD and 0.095" wall thickness. The butt diameter is 2.812" and the center of U-joint to weld dimension is 2.125".

Specifications

• Part Number: 3-28-267
• Brand: UDS
• Series: 1410
• Material: Steel
• Tube OD x Wall: 3.000" x 0.095"
• Butt Diameter: 2.812"
• Center U-Joint to Weld: 2.125"

When fitting the 3-28-267, verify the driveshaft tube OD is 3.000" and wall thickness is 0.095" before welding. The butt diameter of 2.812" must seat fully against the tube end face — any tube OD deviation outside of tolerance will create an incomplete weld joint. The 1410 series U-joint interface must also be confirmed against the companion yoke U-joint series before assembly. The 1410 series sits above the 1350 in the SAE torque ladder and is used in heavy-duty light truck, commercial, and off-road driveshaft applications. The 3.000" tube OD and 0.095" wall specification on the 3-28-267 represent a common combination in this torque class — confirm both dimensions from the tube spec sheet, not the tube OD alone. The center U-joint to weld dimension of 2.125" establishes the working geometry of the assembled driveshaft. Measure and confirm this distance during fitting before final weld. As a UDS steel weld yoke, the 3-28-267 requires proper weld preparation — clean tube end to parent metal, verify concentricity, and follow weld procedure for the tube wall thickness specified.
