Brand:
3-28-137 Weld Tube Yoke 1350 Ser’ , Fits: 3.000 x 0.065 Tube , Butt Dia: 2.875 CL To Weld: 2.030 Inch
$35.40
4 in stock
11 People watching this product now!
Description
3-28-137 UDS 1350 series steel weld yoke. Fits 3.000 in OD x 0.065 in wall tube, 2.875 in butt dia, 2.030 in CL-to-weld. Verify tube OD and wall spec before welding.
Full Description

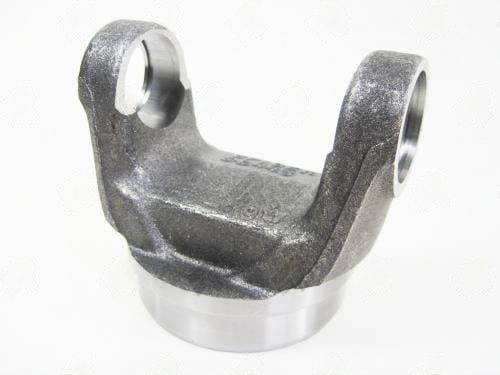

3-28-137 UDS 1350 Series Weld Tube Yoke
The 3-28-137 is a UDS 1350 series steel weld tube yoke designed for a 3.000-inch OD x 0.065-inch wall driveshaft tube. The butt diameter is 2.875 inches and the centerline-to-weld dimension is 2.030 inches. This yoke is welded to the cut end of a driveshaft tube and accepts a 1350 series U-joint at its ears to connect the driveshaft to the next component in the drivetrain.
Specifications
- Part Number: 3-28-137
- Brand: UDS
- Series: 1350
- Material: Steel
- Tube Diameter x Wall: 3.000 in x 0.065 in
- Butt Diameter: 2.875 in
- Center U-Joint to Weld: 2.030 in
When fitting the 3-28-137, confirm the tube OD is 3.000 inches and the wall is 0.065 inches. Using this yoke on a heavier-wall tube will result in an oversized bore and a loose, unweldable fit. The 2.875-inch butt diameter pilots into the tube ID; measure tube concentricity after cutting to ensure a straight weld. The 2.030-inch CL-to-weld length must be factored into the overall driveshaft length calculation.
The 3-28-137 is built for the 1350 series, which sits between 1330 and 1410 in the torque capacity hierarchy. Pair this yoke with 1350 series U-joints throughout the assembly. Verify tube OD and wall specification before welding.
Additional information
| Butt dia | 2.875 |
|---|---|
| Center u j to weld | 2.030 |
| Material | STEEL |
| Partn number | 3-28-137 |
| Series | 1350 |
| Tube dia wall | 3.000X0.065 |
| Brand | UDS |
