2826-902 – Tri & Quad Prongs – Bolt Circle Dia 90MM – Bolt Hole Dia 10MM – Butt Dia 2.344

2826-902 Mercedes Tri Prong – 90MM Bolt Circle – 2.344" Butt Dia – 10MM Bolt Hole

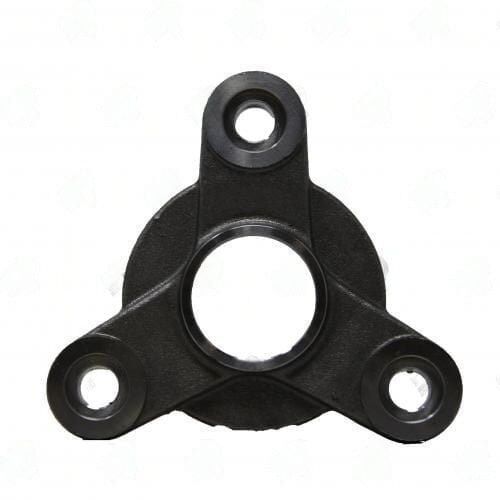

The 2826-902 is a tri prong flange yoke for Mercedes applications with a 90MM bolt circle diameter. The bolt holes are 10MM clearance with a 16mm pilot diameter. The butt diameter measures 2.344" and the face-to-weld length is 1.700". The nose bushing diameter is 31MM. This unit welds to a 2.500" x 0.083" tube.

Specifications

• Part Number: 2826-902
• Application: Mercedes
• Bolt Circle Dia: 90MM
• Bolt Hole Dia: 10MM
• Bolt Hole Pilot Dia: 16mm
• Nose Bushing Dia: 31MM
• Butt Dia: 2.344"
• Face to Weld: 1.700"
• Tube Dia x Wall: 2.500" x 0.083"

When fitting the 2826-902 on a Mercedes application, confirm the driveshaft tube is 2.500" OD with 0.083" wall before welding. The 10MM bolt holes and 16mm pilot diameter must match the Mercedes companion flange. The 2.344" butt diameter seats against the tube end — verify the tube is cut square before tacking. The 2826-902 and 2826-901 are both 90MM bolt circle Mercedes units with 1.700" face-to-weld; the butt diameter differs (2.344" vs 2.375") and the tube wall differs (0.083" vs 0.065"). Measure the tube OD and wall thickness and the companion flange bolt hole diameter before selecting between these two closely matched Mercedes prong variants.
