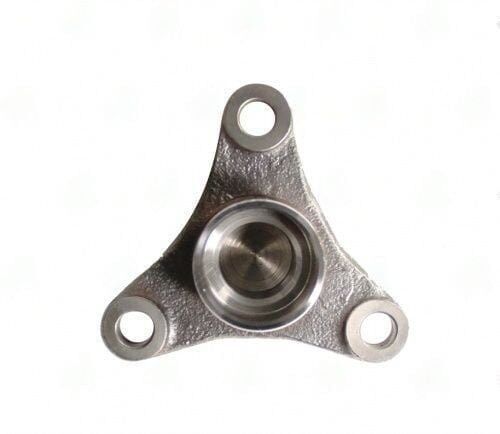

3027-220 – Tri & Quad Prongs – Bolt Circle Dia 96MM – Butt Dia 1.813″ – Face To Weld 1.500

The 3027-220 is a tri-prong yoke for the Land Rover Discovery, using a 2.000" OD tube rather than the more common 2.500" found on most tri-prong applications. The smaller tube combined with a thicker 0.095" wall (a heavy-wall specification for a 2-inch tube) suggests this serves a specific, relatively lightweight driveshaft section on the Discovery.

The 36mm nose bushing is the largest in the tri-prong yoke series, appearing only on this Land Rover application. The larger bushing diameter provides a larger bearing surface for the prong joint interface, which can improve wear life under the high-angle, high-load conditions typical of Land Rover off-road use.

The 1.813" butt diameter fits inside a 2.000" OD tube with 0.095" wall (ID approximately 1.810"), making this a very close-tolerance fit. The absence of a pilot (N/A) means registration relies entirely on the bolt pattern. Confirm the Land Rover Discovery model year as Discovery I, II, and III/IV variants use different driveshaft configurations.
