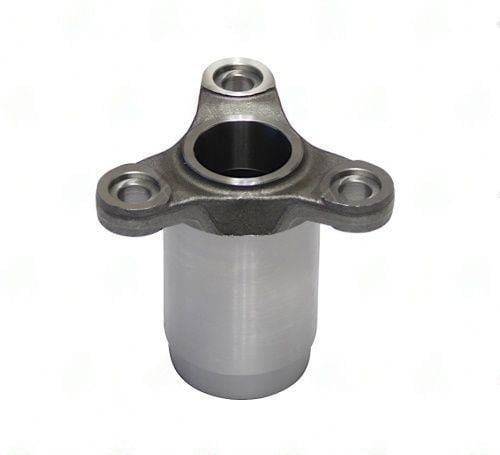

2826-801 – Tri & Quad Prongs – Bolt Circle Dia 80MM – Butt Dia 1.844″ – Face To Weld 2.875

The 2826-801 uses the smallest bolt circle in the tri-prong series at 80mm, with 10mm bolt holes and a 2.000" OD tube. The 2.875" face-to-weld dimension is the longest in the series, meaning the yoke body extends significantly behind the prong flange before reaching the tube weld point. This extended body length may be required to clear differential housing geometry or to position the tube end correctly relative to adjacent chassis components.

The 2.000" tube on this yoke is smaller than the 2.500" used on most other tri-prong variants. This indicates a lighter-duty or smaller driveshaft application, likely a compact passenger car rear driveshaft where a smaller-diameter shaft is sufficient for the torque requirements.

• Part Number: 2826-801
• Bolt Circle Dia: 80mm
• Bolt Hole Dia: 10mm
• Pilot Dia: 16mm
• Nose Bushing Dia: 31mm
• Butt Diameter: 1.844"
• Face-to-Weld: 2.875"
• Tube: 2.000" x 0.083"

The 80mm bolt circle does not appear on any specific vehicle application in the catalog notes, so this may be an import application requiring measurement for vehicle identification. Measure your bolt circle and pilot before ordering. The 2.875" face-to-weld is distinctive - if your yoke body is this long behind the prong face, this is likely your part.
