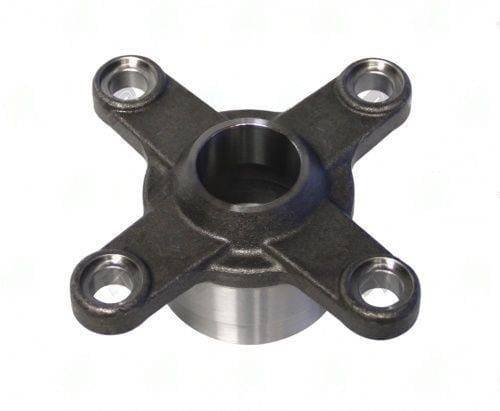

2826-4110 – Tri & Quad Prongs – Bolt Circle Dia 110MM – Butt Dia 2.344″ – Face To Weld 1.375
$92.41
26 in stock
Description
2826-4110 quad-prong yoke — Mercedes/Chrysler. 110mm BC, 12mm holes, 18mm pilot, 31mm bushing. Butt: 2.344″. Face-to-weld: 1.375″.
Full Description
The 2826-4110 is a quad-prong weld yoke serving both Mercedes-Benz and Chrysler applications on a 110mm bolt circle. The Mercedes and Chrysler overlap on this part reflects the DaimlerChrysler merger period (1998-2007) when shared components appeared across both brands. Chrysler models like the 300C, Charger, Magnum, and Challenger with rear-wheel-drive platforms used Mercedes-derived differential designs.
Four-prong construction at 110mm bolt circle suggests mid-size to large RWD vehicles where torque loads require the additional prong contact points over a three-prong design. The 1.375" face-to-weld is relatively short, giving this yoke a compact profile behind the flange face.
- Part Number: 2826-4110
- Type: Quad-Prong
- Application: Mercedes-Benz / Chrysler
- Bolt Circle Dia: 110mm
- Bolt Hole Dia: 12mm
- Pilot Dia: 18mm
- Nose Bushing Dia: 31mm
- Butt Diameter: 2.344"
- Face-to-Weld: 1.375"
- Tube: 2.500" x 0.083"
Compare with 2826-110 (tri-prong, 110mm, 1.625" FTW, Mercedes/Chrysler) and 2826-100 (tri-prong, 110mm, 1.500" FTW) when your application is 110mm but the prong count or face-to-weld dimension differs. Verify prong count on your differential flange before ordering.
Additional information
| Bolt circle dia | 110MM |
|---|---|
| Bolt hole dia | 12MM |
| Butt dia | 2.344 |
| Face to weld | 1.375″ |
| Nose bushing dia | 31MM |
| Notes | MERCEDES / CHRYSLER |
| Partn number | 2826-4110 |
| Tube dia wall | 2.500X0.083 |
| Bolt hole pilot dia | 18 mm |
