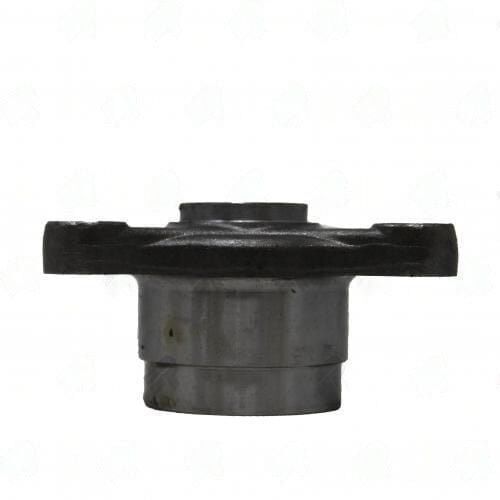

2826-110 – Tri & Quad Prongs – Bolt Circle Dia 110MM – Bolt Hole Dia 12MM – Butt Dia 2.344
$87.11
25 in stock
Description
2826-110 tri-prong yoke — Mercedes/Chrysler. 110mm BC, 12mm holes, 18mm pilot, 31mm bushing. Butt: 2.344″. Face-to-weld: 1.625″.
Full Description
The 2826-110 is the tri-prong version of the 110mm Mercedes/Chrysler yoke family. Three variants of the 110mm Mercedes/Chrysler yoke exist in this catalog: 2826-100 (1.500" FTW), 2826-110 (1.625" FTW), and 2826-4110 (quad-prong, 1.375" FTW). The face-to-weld dimension is the primary differentiator between the two tri-prong versions.
The 1.625" face-to-weld positions the tube weld point further from the flange than the 2826-100's 1.500" dimension. This 0.125" difference affects the effective driveshaft length when assembled - a yoke with a longer FTW dimension contributes more to the total shaft length.
| Specification | Value |
|---|---|
| Part Number | 2826-110 |
| Type | Tri-Prong |
| Application | Mercedes-Benz / Chrysler |
| Bolt Circle Dia | 110mm |
| Bolt Hole Dia | 12mm |
| Pilot Dia | 18mm |
| Nose Bushing Dia | 31mm |
| Butt Diameter | 2.344" |
| Face-to-Weld | 1.625" |
| Tube | 2.500" x 0.083" |
To identify the correct 110mm tri-prong yoke for your application: measure the face-to-weld dimension on the original yoke. 1.500" = 2826-100, 1.625" = 2826-110. If the prong count is four rather than three, order 2826-4110 regardless of the FTW measurement. Prong count takes priority over FTW in selection.
Browse tri and quad prong yokes.
Additional information
| Bolt circle dia | 110MM |
|---|---|
| Bolt hole dia | 12MM |
| Butt dia | 2.344 |
| Face to weld | 1.625″ |
| Nose bushing dia | 31MM |
| Notes | MERCEDES / CHRYSLER |
| Partn number | 2826-110 |
| Tube dia wall | 2.500X0.083 |
| Bolt hole pilot dia | 18 mm |
