2826-100 – Tri & Quad Prongs – Bolt Circle Dia 110MM – Butt Dia 2.344″ – Face To Weld 1.500

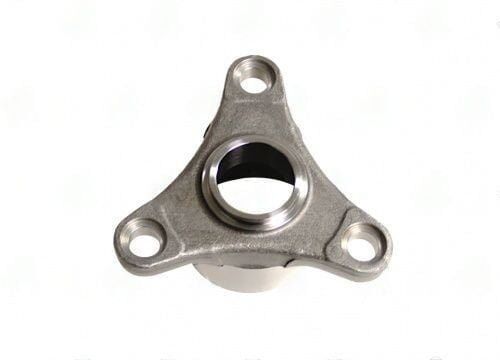

The 2826-100 is the 1.500" face-to-weld variant of the 110mm Mercedes/Chrysler tri-prong yoke. All three tri-prong/quad-prong options in the 110mm range (2826-100, 2826-110, 2826-4110) share the same bolt circle, hole size, pilot, bushing, and butt diameter. Only the face-to-weld dimension and prong count differ.

When replacing a driveshaft yoke, the face-to-weld dimension affects overall driveshaft length. If the original yoke had a 1.500" FTW and the replacement has 1.625", the assembled driveshaft will be 0.125" longer. This may not be significant if the slip yoke at the other end can absorb the change, but in critical-length applications it can affect U-joint angle and slip engagement depth.

• Part Number: 2826-100
• Type: Tri-Prong
• Application: Mercedes-Benz / Chrysler
• Bolt Circle Dia: 110mm
• Bolt Hole Dia: 12mm
• Pilot Dia: 18mm
• Nose Bushing Dia: 31mm
• Butt Diameter: 2.344"
• Face-to-Weld: 1.500"
• Tube: 2.500" x 0.083"

Before ordering any 110mm prong yoke, confirm: (1) prong count - three or four, (2) face-to-weld dimension from original yoke. If you have the original yoke in hand, measure from the face of the flange to the edge of the tube butt. That measurement is your FTW. 1.500" = this part, 1.625" = 2826-110.
