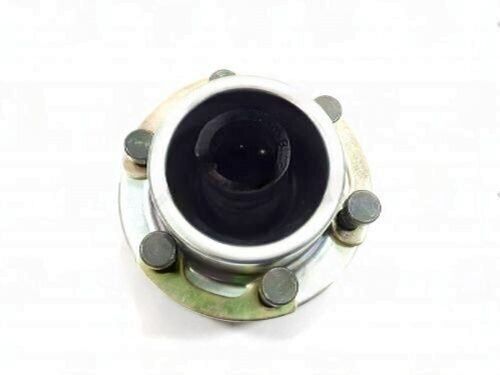

2752-942 – CV Joint Kit – 24.19″ Splines Dia – 94″ Outer Dia – 30 Spline
$112.85
2 in stock
20
People watching this product now!
Description
2752-942 CV joint kit — Rzeppa. 94 OD | 24.19 x 30 spline | 27.08 inner race width | 27.3 outer race width. Complete assembly, all components matched.
Full Description
CV joint kit selection requires matching outer diameter, spline count, and inner/outer race width. The 2752-942 is spec'd for one application -- confirm all three.
2752-942 CV Joint Kit Dimensions
The 2752-942 CV joint kit: 94 OD | 24.19 x 30 spline | 27.08 inner race width | 27.3 outer race width. FITS JAGUAR, CVJ.
Grease the joint thoroughly during installation -- CV joint failures from grease starvation happen faster than mechanical wear failures. Pack the inner race cavity before seating the cage.
Key Features
- Style: Rzeppa -- constant velocity design for smooth power delivery at angle
- Outer dia: 94 -- must fit housing bore exactly
- Spline: 24.19 x 30 -- shaft engagement spec
- Inner race width: 27.08 -- race stack dimension
- Outer race width: 27.3 -- housing bore dimension
- Complete kit -- all components matched for correct assembly and load distribution
- Note: FITS JAGUAR, CVJ
Specifications
- SKU: 2752-942
- Brand: UDS
- Style: Rzeppa
- Outer Dia: 94
- Spline Dia: 24.19
- Spline Count: 30
- Inner Race Width: 27.08
- Outer Race Width: 27.3
- Notes: FITS JAGUAR, CVJ
Additional information
| Bolt hole count |
6 |
|---|---|
| Bolt hole dia |
8.27 |
| Boot cap part |
INCLUDED |
| Gasket |
INCLUDED |
| Inner race width |
27.08 |
| Outer dia |
94 |
| Outer race width |
27.3 |
| Splines count |
30 |
| Splines dia |
24.19 |
| Partn number |
2752-942 |
| Notes |
FITS JAGUAR, CVJ |
