2726-257 – Tri & Quad Prongs – Bolt Circle Dia 96MM – Butt Dia 2.344″ – Face To Weld 1.125

2726-257 BMW Tri Prong – 96MM Bolt Circle – 2.344" Butt Dia – 1.125" Face to Weld

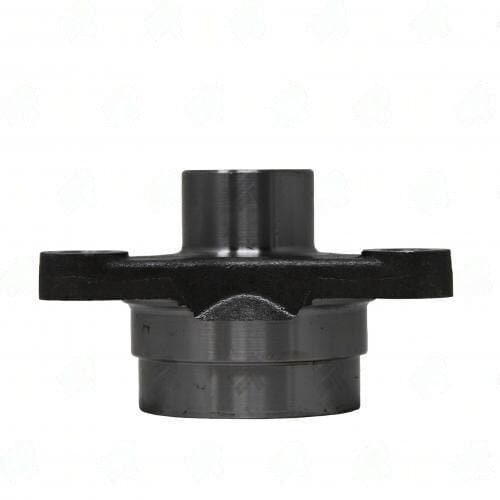

The 2726-257 is a tri prong flange yoke for BMW applications with a 96MM bolt circle diameter. The bolt holes are 12MM clearance. The butt diameter measures 2.344" and the face-to-weld length is 1.125". The nose bushing diameter is 28MM. This unit welds to a 2.500" x 0.083" tube.

Specifications

• Part Number: 2726-257
• Application: BMW
• Bolt Circle Dia: 96MM
• Bolt Hole Dia: 12MM
• Bolt Hole Pilot Dia: N/A
• Nose Bushing Dia: 28MM
• Butt Dia: 2.344"
• Face to Weld: 1.125"
• Tube Dia x Wall: 2.500" x 0.083"

When fitting the 2726-257 on a BMW application, confirm the driveshaft tube is 2.500" OD with 0.083" wall before welding. The 12MM bolt holes and 28MM nose bushing must match the BMW companion flange. The 1.125" face-to-weld is shorter than the 2726-260 (1.375" FTW) used on 96MM non-BMW applications — confirm this dimension against the specific BMW chassis. The 2726-257 is the 96MM bolt circle BMW variant using a 2.500" tube and 28MM standard nose bushing. Contrast with the 2726-55 (also 96MM BMW but 2.000" tube and 0.750" FTW). Confirm which tube diameter the BMW application uses — 2.500" for the 2726-257 or 2.000" for the 2726-55 — before ordering.
