2726-258 – Tri & Quad Prongs – Bolt Circle Dia 105MM – Butt Dia 2.344″ – Face To Weld 1.187

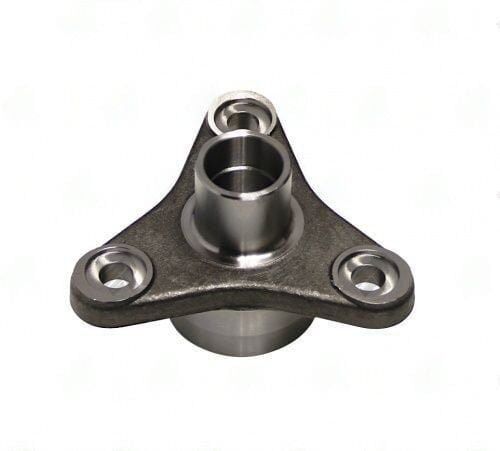

2726-258 Late Model BMW Tri Prong – 105MM Bolt Circle – 2.344" Butt Dia – 1.187" Face to Weld

The 2726-258 is a tri prong flange yoke for late model BMW applications with a 105MM bolt circle diameter. The bolt holes are 12MM clearance with a 22mm pilot diameter. The butt diameter measures 2.344" and the face-to-weld length is 1.187". The nose bushing diameter is 28MM. This unit welds to a 2.500" x 0.083" tube.

Specifications

• Part Number: 2726-258
• Application: Late Model BMWs
• Bolt Circle Dia: 105MM
• Bolt Hole Dia: 12MM
• Bolt Hole Pilot Dia: 22mm
• Nose Bushing Dia: 28MM
• Butt Dia: 2.344"
• Face to Weld: 1.187"
• Tube Dia x Wall: 2.500" x 0.083"

When fitting the 2726-258 on late model BMW applications, confirm the driveshaft tube is 2.500" OD with 0.083" wall before welding. The 22mm pilot diameter and 12MM bolt holes must be verified against the BMW companion flange. The 1.187" face-to-weld is a distinctive measurement — confirm this against the shaft assembly before selecting over the adjacent BMW prong variants. Within the 105MM bolt circle BMW group, the 2726-258 carries a 1.187" face-to-weld, differentiating it from the 2726-255 (1.250" FTW), 2726-256 (1.125" FTW, male pin), and 2726-252 (1.250" FTW, 14MM holes). Measure the specific BMW application's required face-to-weld carefully before ordering.
