2726-256 – Tri & Quad Prongs – Bolt Circle Dia 105MM – Butt Dia 2.344″ – Face To Weld 1.125

2726-256 Tri Prong Male Pin Style – 105MM Bolt Circle – 2.344" Butt Dia – 1.125" Face to Weld

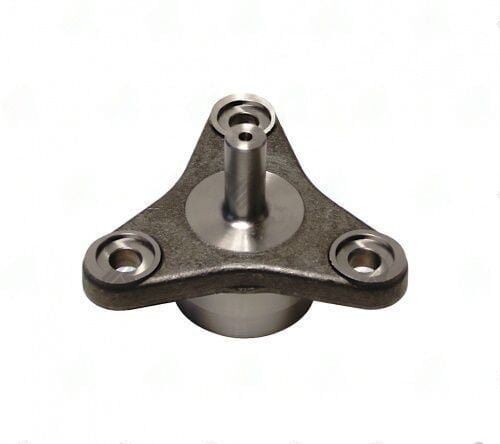

The 2726-256 is a tri prong flange yoke in male pin style with a 105MM bolt circle diameter. The bolt holes are 12MM clearance with a 22mm pilot diameter. The butt diameter measures 2.344" and the face-to-weld length is 1.125". The nose bushing diameter is 16MM. This unit welds to a 2.500" x 0.083" tube.

Specifications

• Part Number: 2726-256
• Bolt Circle Dia: 105MM
• Bolt Hole Dia: 12MM
• Bolt Hole Pilot Dia: 22mm
• Nose Bushing Dia: 16MM
• Butt Dia: 2.344"
• Face to Weld: 1.125"
• Tube Dia x Wall: 2.500" x 0.083"
• Style: Male Pin

When fitting the 2726-256, confirm the driveshaft tube is 2.500" OD with 0.083" wall before welding. The male pin style nose (16MM bushing) protrudes into the companion flange pilot; confirm this interface style rather than a standard female-pilot socket. The 22mm pilot diameter and 12MM bolt holes must also match the flange. The 2726-256 is the male pin variant of the 105MM bolt circle group at 1.125" face-to-weld. Compare against the 2726-258 (28MM nose bushing, 1.187" FTW, standard pilot) and 2726-255 (28MM nose bushing, 1.250" FTW) to confirm the male pin style and 1.125" FTW are required for the specific application before ordering.
