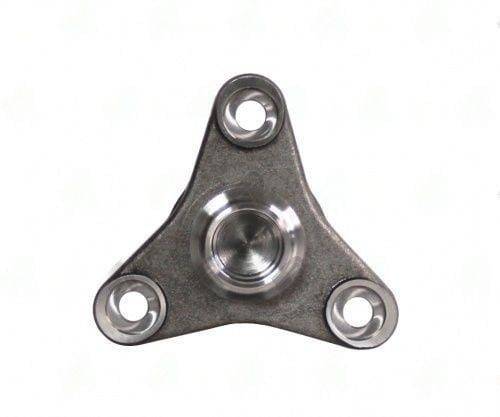

2726-255 – Tri & Quad Prongs – Bolt Circle Dia 105MM – Bolt Hole Dia 12MM – Butt Dia 2.344
$74.21
15 in stock
19 People watching this product now!
Description
2726-255 tri-prong yoke — BMW. 105mm BC, 12mm holes, 22mm pilot, 28mm bushing. Butt: 2.344″. Face-to-weld: 1.250″.
Full Description
The 2726-255 is a BMW tri-prong yoke on the 105mm bolt circle, using conventional socket prongs (28mm bushing, not male-pin). The face-to-weld of 1.250" differentiates it from 2726-258 (same BC, 1.187" FTW) and 2726-256 (male-pin, 1.125" FTW) on the same bolt pattern.
Why do multiple BMW 105mm yokes exist with different FTW dimensions? BMW used different driveshaft tube lengths on different models (3-series, 5-series, 7-series, Z3/Z4, X5) and different model years, and the face-to-weld dimension changes the tube length contribution of the yoke end. A 0.063" FTW difference between 2726-255 and 2726-258 translates directly to a 0.063" difference in shaft length after assembly.
- Part Number: 2726-255
- Application: BMW
- Bolt Circle Dia: 105mm
- Bolt Hole Dia: 12mm
- Pilot Dia: 22mm
- Nose Bushing Dia: 28mm
- Butt Diameter: 2.344"
- Face-to-Weld: 1.250"
- Tube: 2.500" x 0.083"
For BMW driveshaft repairs, measuring the original yoke's face-to-weld is the most reliable way to select the correct replacement. Use calipers from the flat face of the prong flange to the end of the tube butt stub on the original yoke. If that measures 1.250", order 2726-255. For 1.187", order 2726-258.
See all tri and quad prong yokes.
Additional information
| Bolt circle dia | 105MM |
|---|---|
| Bolt hole dia | 12MM |
| Butt dia | 2.344 |
| Face to weld | 1.250″ |
| Nose bushing dia | 28MM |
| Notes | BMW |
| Partn number | 2726-255 |
| Tube dia wall | 2.500X0.083 |
| Bolt hole pilot dia | 22 mm |
