2726-254 – Tri & Quad Prongs – Bolt Circle Dia 110MM – Bolt Hole Dia 12MM – Butt Dia 2.344

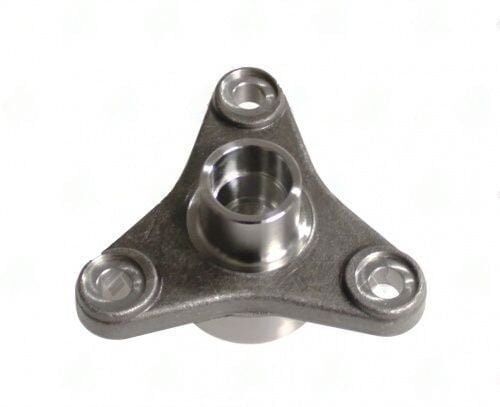

2726-254 BMW Tri Prong – 110MM Bolt Circle – 2.344" Butt Dia – 1.250" Face to Weld

The 2726-254 is a tri prong flange yoke for BMW applications with a 110MM bolt circle diameter. The bolt holes are 12MM clearance with a 22mm pilot diameter. The butt diameter measures 2.344" and the face-to-weld length is 1.250". The nose bushing diameter is 28MM. This unit welds to a 2.500" x 0.083" tube.

Specifications

• Part Number: 2726-254
• Application: BMW
• Bolt Circle Dia: 110MM
• Bolt Hole Dia: 12MM
• Bolt Hole Pilot Dia: 22mm
• Nose Bushing Dia: 28MM
• Butt Dia: 2.344"
• Face to Weld: 1.250"
• Tube Dia x Wall: 2.500" x 0.083"

When fitting the 2726-254 on a BMW application, confirm the driveshaft tube is 2.500" OD with 0.083" wall before welding. The 22mm pilot diameter and 12MM bolt holes must be verified against the BMW companion flange. The 110MM bolt circle on the 2726-254 is distinct from the 105MM circle used on other BMW-specific prongs in the 2726 series. The 2726-254 is the 110MM bolt circle BMW tri prong at 1.250" face-to-weld. Confirm the BMW application requires a 110MM bolt circle rather than the 105MM (2726-255, 2726-258) or 96MM (2726-257) variants before ordering. All BMW variants in this series use the 28MM standard nose bushing and 2.500" tube.
