2726-253 – Tri & Quad Prongs – Bolt Circle Dia 105MM – Bolt Hole Dia 10MM – Butt Dia 2.344
$74.36
13 in stock
11
People watching this product now!
Description

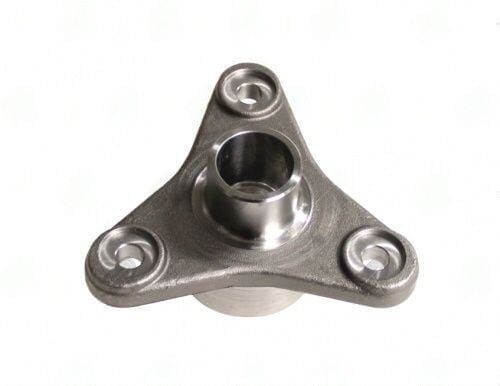

2726-253 tri-prong yoke — BMW. 105mm BC, 10mm holes, 22mm pilot, 28mm bushing. Butt: 2.344″. Face-to-weld: 1.250″.
Full Description
The 2726-253 uses 10mm bolt holes at 105mm bolt circle, which immediately distinguishes it from 2726-255 (12mm holes, same BC, same FTW). The 10mm hole accepts M10 fasteners while the 12mm hole uses M12. This difference reflects different BMW model specifications where the differential flange uses smaller bolts on certain variants.
Everything else on this yoke matches the 2726-255 (105mm BC, 22mm pilot, 28mm bushing, 2.344" butt, 1.250" FTW, 2.500" x 0.083" tube). Ordering the wrong hole size means the bolts won't fit or will be loose in undersized holes. Always verify the bolt diameter on your existing flange hardware.
- Part Number: 2726-253
- Application: BMW
- Bolt Circle Dia: 105mm
- Bolt Hole Dia: 10mm (M10)
- Pilot Dia: 22mm
- Nose Bushing Dia: 28mm
- Butt Diameter: 2.344"
- Face-to-Weld: 1.250"
- Tube: 2.500" x 0.083"
A simple check to confirm bolt size: measure the head width of the existing flange bolt. M10 bolts have a 17mm head (typically), M12 bolts a 19mm head. Or measure the bolt shank diameter: M10 = 10mm, M12 = 12mm. If M10, order 2726-253. If M12, order 2726-255. Both are the same price and visual appearance.
Additional information
| Bolt circle dia | 105MM |
|---|---|
| Bolt hole dia | 10MM |
| Butt dia | 2.344 |
| Face to weld | 1.250″ |
| Nose bushing dia | 28MM |
| Notes | BMW |
| Partn number | 2726-253 |
| Tube dia wall | 2.500X0.083 |
| Bolt hole pilot dia | 22 mm |
