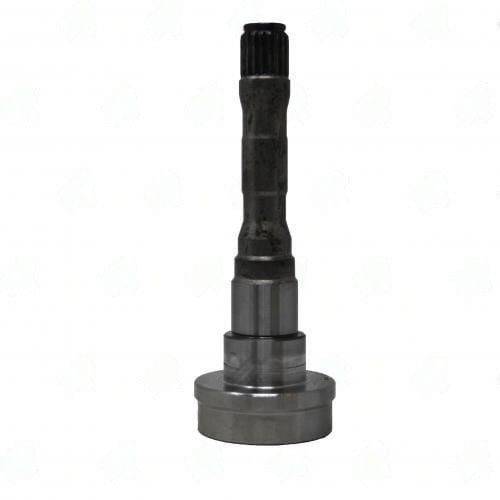

2654-681 – Stub Midship Shaft – 19 X 0.850 Splines – Butt Dia 2.375″ – Tube Dia Wall 2.500X0.065
$88.02
1 in stock
Description
2654-681 midship stub shaft with 19 X 0.850 spline and ” bearing journal for two-piece driveshaft center support bearing installations.
Full Description
Two-Piece Driveshaft Midship Component: 2654-681
Converting a single-piece driveshaft to a two-piece layout -- or rebuilding an existing multi-piece shaft -- requires a stub shaft with a precisely dimensioned carrier bearing journal. The 2654-681 delivers: " bearing journal, 19 X 0.850" splines (0.775" engagement), and a weld-ready 2.375" butt end for 2.500" tube.
Specifications
| Parameter | Value |
|---|---|
| Part Number | 2654-681 |
| Spline Count × Dia. | 19 X 0.850" |
| Spline Length | 0.775" |
| Bearing Journal Dia. | " |
| Butt Diameter | 2.375" |
| End-to-Weld | 6.500" |
| Compatible Tube | 2.500 OD x 0.065" wall |
| Style | CVJ |
| Brand | UDS |
| Notes | 2252-683 or 2252-681 cvj weld yoke. |
Carrier Bearing Fitment
Center support bearings are specified by their bore ID. The 2654-681 presents a " journal -- look up a CSB with a bore ID equal to this value (or within bearing-fit tolerances: H7/k6 for a press fit, H7/h6 for a running fit). Pressing a CSB with the wrong bore ID will either score the journal surface or leave the bearing loose, both of which cause vibration and early failure.
Spline Engagement & Slip Travel
This slip-style stub shaft (telescoping splined section absorbs driveline length changes). With 0.775" of spline engagement, there is sufficient torque-carrying contact area for standard passenger and light truck applications. Grease the splines before assembly with a high-pressure NLGI 2 grease to prevent fretting corrosion under cyclic torque loads.
Assembly Notes
- Press CSB onto " journal using an inner-race driver.
- Weld tube to 2.375" butt end -- maintain full penetration and control heat input.
- Check TIR at journal after welding -- reject if above 0.003".
- Dynamic balance the completed shaft assembly.
Important: 2252-683 or 2252-681 cvj weld yoke.
Additional information
| Butt dia | 2.375 |
|---|---|
| End to weld | 6.500 |
| Notes | 2252-683 or 2252-681 cvj weld yoke., USED WITH: 2252-682 |
| Partn number | 2654-681 |
| Splines count dia | 19 X 0.850 |
| Splines length | 0.775 |
| Tube dia | 2.500 |
| Tube wall | 0.065″ |
| Style | CVJ |
