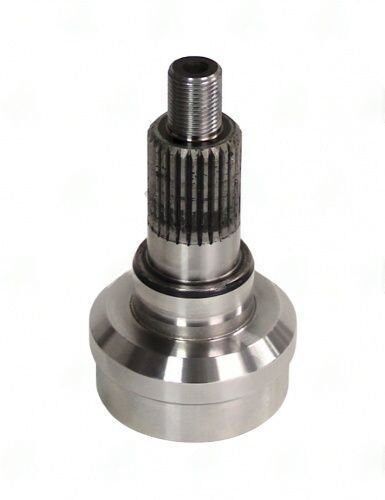

2653-263 – Stub & Midship Shaft – 26 X 1.100 Splines – Butt Dia 2.375″ – Tube Dia Wall 2.500X0.065
$74.78
18 People watching this product now!
Description
2653-263 Midshaft Stub — 26 X 1.100 spline | 1.125″ spline length | 2.375″ butt dia | 3.125″ end-to-weld | fits 2.500 tube. Proven two-piece driveshaft center section. Verify spline and tube specs.
Full Description
The 2653-263 midshaft stub is the center section of a two-piece driveshaft — it carries the center support bearing and bridges the front and rear shaft assemblies. Spline count, spline diameter, and butt diameter are all spec-specific. The 2653-263 midshaft stub won't fit a different tube OD or a different output shaft spline, and substituting a close-but-not-exact part will produce vibration that traces directly back to this component.
2653-263 Midshaft Stub — Spline & Tube Dimensions
The 2653-263 midshaft stub specs: 26 X 1.100 spline | 1.125" spline length | 2.375" butt dia | 3.125" end-to-weld | fits 2.500 tube. Used with: 2604-261. The butt diameter determines how the stub seats in the driveshaft tube — too loose and the weld joint runs off-center. Spline length determines engagement depth on the output shaft; short engagement under high torque loads damages the shaft splines before the stub shows any sign of wear.
When replacing a midshaft stub, measure both the tube ID and the output shaft spline count before ordering. Check runout on the new 2653-263 midshaft stub before welding — a stub with more than 0.005" runout will never balance correctly regardless of how many weights you add.
Key Features
- Spline: 26 X 1.100 — verify against output shaft
- Spline length: 1.125" — full engagement required under load
- Butt dia: 2.375" — must seat concentrically in driveshaft tube
- End-to-weld: 3.125" — factors into total shaft length
- Tube fit: 2.500 — designed for this tube specification
- Brand: UDS
- Note: Used with: 2604-261
Specifications
- SKU: 2653-263
- Brand: UDS
- Spline: 26 X 1.100
- Spline Length: 1.125"
- Butt Dia: 2.375"
- End to Weld: 3.125"
- Tube Fit: 2.500
- Notes: Used with: 2604-261
Additional information
| Butt dia | 2.375 |
|---|---|
| End to weld | 3.125 |
| Notes | Used with: 2604-261 |
| Partn number | 2653-263 |
| Splines count dia | 26 X 1.100 |
| Splines length | 1.125 |
| Tube dia | 2.500 |
| Tube wall | 0.065" |
| Style | FIXED |
