Brand:

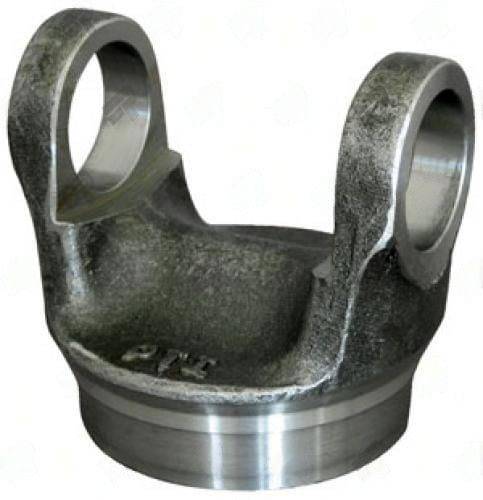

2626-26 – Weld Yokes – 7260 Series – Butt Dia 2.455″ – Tube Dia Wall 2.570X0.065
$40.93
1 in stock
Description
7260-series steel weld yoke for Mazda 2.570×0.065 tube with 2.455″ butt diameter and 1.625″ centerline-to-weld.
Full Description
- Part Number
- 2626-26
- Series
- 7260
- Tube Diameter x Wall
- 2.570" x 0.065"
- Butt Diameter
- 2.455"
- Centerline to Weld
- 1.625"
- Material
- Steel
- Application
- Mazda
The 2626-26 is a 7260-series application for Mazda rear-drive and truck platforms that use a 2.570" tube OD at 0.065" wall -- a Mazda-specific tube diameter that does not correspond to any standard SAE inch-increment tube size. The 2.455" butt diameter is derived from the non-standard tube bore and is unique to Mazda-series components in this family. A common error when rebuilding Mazda driveshafts is substituting the 2.500" tube variant (2625-25 or similar) and assuming the 0.070" diameter difference is negligible. In fact, the 0.070" pilot OD mismatch produces a visible gap between yoke and tube bore that results in a weld with insufficient penetration at the tack points, causing the yoke to walk out of center during final welding and producing unacceptable runout. Use only the Mazda-specific 2.570" variants for these applications. This weld yoke requires the correct 7260-series U-joint for Mazda applications.
Additional information
| Butt dia | 2.455 |
|---|---|
| Center u j to weld | 1.625 |
| Material | STEEL |
| Notes | MAZDA |
| Partn number | 2626-26 |
| Series | 7260 |
| Tube dia wall | 2.570X0.065 |
| Brand | UDS |
