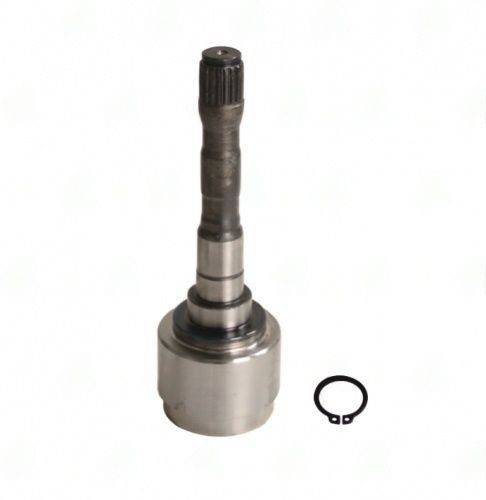

2254-693 – Stub Midship Shaft – Bearing Dia 0.985″ – Butt Dia 2.344″ – End To Weld 7.550
$95.30
1 in stock
14 People watching this product now!
Description
2254-693 stub midship shaft — CVJ style. Bearing dia: 0.985″. Butt: 2.344″. Splines: 19 x 0.850″. End-to-weld: 7.550″. Use with 2252-682.
Full Description
The 2254-693 shares the same 7.550" end-to-weld, 0.985" bearing diameter, and 19 x 0.850" spline specification as the 2354-684, but uses a 2.344" butt diameter with 0.083" wall tube versus the 2354-684's 2.375" butt and 0.065" wall tube. The thicker 0.083" wall is better suited for higher torque applications or longer shaft spans where tube rigidity is important.
The catalog specifies this shaft is used with midship yoke 2252-682. This pairing information is critical - ordering the stub shaft without the correct mating midship yoke will result in an assembly that cannot be completed or will not seat correctly.
- Part Number: 2254-693
- Style: CVJ
- Bearing Diameter: 0.985"
- Butt Diameter: 2.344"
- Tube OD: 2.500"
- Tube Wall: 0.083"
- End-to-Weld: 7.550"
- Spline: 19 x 0.850"
- Spline Length: 0.879"
- Mating Yoke: 2252-682
The 0.031" butt diameter difference between 2254-693 (2.344") and 2254-683 (2.375") reflects different tube bore specifications. Measuring the tube bore at the weld end with a bore gauge is the most reliable method to confirm the correct butt. Also compare 2254-683 (same specs, 2.375" butt, 0.065" wall) to confirm which tube wall applies to your application.
See all stub and midship shaft components.
Additional information
| Bearing dia | 0.985 |
|---|---|
| Butt dia | 2.344 |
| End to weld | 7.550 |
| Notes | USED WITH: 2252-682 |
| Partn number | 2254-693 |
| Splines count dia | 19 X 0.850 |
| Splines length | 0.879 |
| Tube dia | 2.500 |
| Style | CVJ |
| Tube wall | 0.083″ |
