2-40-1811 – Stub Midship Shaft – 16 X 1.375 Splines – Butt Dia 2.375″ – Tube Dia 2.500
$40.31
1 in stock
Description

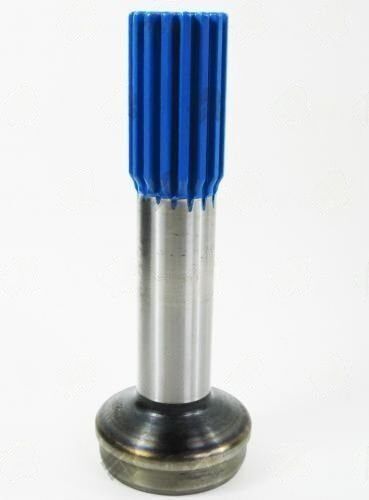

2-40-1811 midship stub shaft with 16 X 1.375 spline and ” bearing journal for two-piece driveshaft center support bearing installations.
Full Description
Two-Piece Driveshaft Midship Component: 2-40-1811
Converting a single-piece driveshaft to a two-piece layout -- or rebuilding an existing multi-piece shaft -- requires a stub shaft with a precisely dimensioned carrier bearing journal. The 2-40-1811 delivers: " bearing journal, 16 X 1.375" splines (2.250" engagement), and a weld-ready 2.375" butt end for 2.500" tube.
Specifications
| Parameter | Value |
|---|---|
| Part Number | 2-40-1811 |
| Spline Count × Dia. | 16 X 1.375" |
| Spline Length | 2.250" |
| Bearing Journal Dia. | " |
| Butt Diameter | 2.375" |
| End-to-Weld | 6.344" |
| Compatible Tube | 2.500 OD x 0.065" wall |
| Style | SLIP |
| Brand | UDS |
Carrier Bearing Fitment
Center support bearings are specified by their bore ID. The 2-40-1811 presents a " journal -- look up a CSB with a bore ID equal to this value (or within bearing-fit tolerances: H7/k6 for a press fit, H7/h6 for a running fit). Pressing a CSB with the wrong bore ID will either score the journal surface or leave the bearing loose, both of which cause vibration and early failure.
Spline Engagement & Slip Travel
This slip-style stub shaft (telescoping splined section absorbs driveline length changes). With 2.250" of spline engagement, there is sufficient torque-carrying contact area for standard passenger and light truck applications. Grease the splines before assembly with a high-pressure NLGI 2 grease to prevent fretting corrosion under cyclic torque loads.
Assembly Notes
- Press CSB onto " journal using an inner-race driver.
- Weld tube to 2.375" butt end -- maintain full penetration and control heat input.
- Check TIR at journal after welding -- reject if above 0.003".
- Dynamic balance the completed shaft assembly.
Additional information
| Butt dia | 2.375 |
|---|---|
| End to weld | 6.344 |
| Partn number | 2-40-1811 |
| Splines count dia | 16 X 1.375 |
| Splines length | 2.250 |
| Tube dia | 2.500 |
| Style | Slip |
| Tube wall | 0.065″ |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stub & Midship Shaft (169) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Partn number 1253-242 Butt dia 1.875 Splines count dia 24 x 0.995 End to weld 2.875 Style FIXED Notes use is with : 1204-241 nut sold sepratly: 858018 Tube dia 2.000 Tube wall 0.065" Length 1.180 Bearing dia 0.985 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.375 End to weld 3.125 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-261 Splines count dia 26 x 1.115 Splines length 1.120 Tube dia 2.500 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 1.875 End to weld 2.875 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-262 Splines count dia 26 x 1.115 Splines length 1.180 Tube dia 2.000 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.375 End to weld 6.625 Notes This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682 Partn number 1254-681 Splines count dia 19 X 0.850 Splines length 0.775 Tube dia 2.500 Style CVJ Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.344 End to weld 6.625 Notes use it with: 2252-682 Partn number 1254-683 Splines count dia 19 X 0.850 Splines length 0.775 Tube dia 2.500 Tube wall 0.083" Style CVJ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.435 End to weld 7.500 Notes TOYOTA Partn number 1340-20 Splines count dia 20 X 1.310 Splines length 1.765 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 9.375 Notes Toyota, Sold only in kit 1343-20L Partn number 1340-20L Splines count dia 20 X 1.310 Splines length 6.500 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.435 End to weld 6.375 Notes TOYOTA Partn number 1340-21 Splines count dia 20 X 1.310 Splines length 1.880 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.435 End to weld 5.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-231 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.560 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.344 End to weld 5.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-232 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.500 Tube wall 0.083" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
