2-40-1701-1 – Stub Midship Shaft – 16 X 1.375 Splines – Butt Dia 1.766″ – Tube Dia 2.000
$42.84
Description

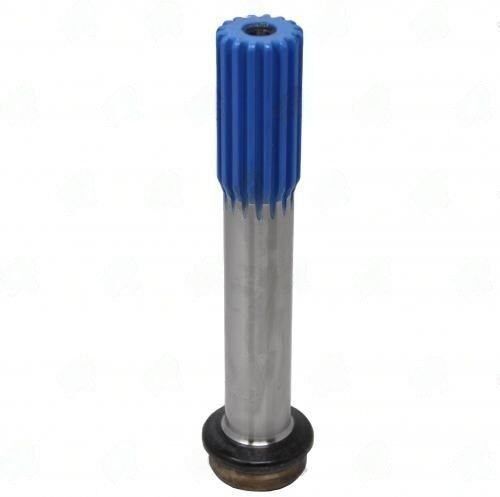

2-40-1701-1 midship stub shaft with 16 X 1.375 spline and ” bearing journal for two-piece driveshaft center support bearing installations.
Full Description
Center Support Shaft Section -- 2-40-1701-1
Multi-piece driveshafts depend on a precision midship stub shaft to maintain alignment between the carrier bearing and the propshaft tube. The 2-40-1701-1 provides a " bearing journal, a 16 X 1.375" spline section (2.625" long), and a 1.766" butt diameter for 2.000" tube welding -- everything needed for a correct two-piece shaft assembly.
Complete Specifications
| Spec | Value |
|---|---|
| SKU | 2-40-1701-1 |
| Splines | 16 X 1.375" |
| Spline Length | 2.625" |
| Bearing Journal | " |
| Butt Dia. | 1.766" |
| End to Weld | 7.750" |
| Tube Size | 2.000 OD x 0.120 wall |
| Style | SLIP |
Why the Bearing Journal Dimension is Critical
The center support bearing must press onto a journal that is within a few ten-thousandths of an inch of the bearing bore. The 2-40-1701-1's journal is ground to " -- use this measurement to look up the correct CSB part number. A mismatched bearing diameter is the most common cause of premature CSB failure and driveshaft vibration.
Tube Welding
The butt end accepts 2.000 OD tubing. Clean the tube bore and yoke butt before fitting. Tack at four positions, check runout, then complete the weld. Post-weld TIR at the bearing journal should be below 0.003" before the CSB is pressed on.
Style: Slip
This is a slip-style stub shaft (telescoping splined section absorbs driveline length changes). Match the style to your driveshaft layout -- using a fixed stub where a slip stub is required will bind under suspension travel and can fracture the shaft.
Additional information
| Butt dia | 1.766 |
|---|---|
| End to weld | 7.750 |
| Partn number | 2-40-1701-1 |
| Splines count dia | 16 X 1.375 |
| Splines length | 2.625 |
| Tube dia | 2.000 |
| Tube wall | 0.120 |
| Style | Slip |
More Parts from the same Category
Filters Sort results
Reset Apply
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stub & Midship Shaft (169) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Partn number 1253-242 Butt dia 1.875 Splines count dia 24 x 0.995 End to weld 2.875 Style FIXED Notes use is with : 1204-241 nut sold sepratly: 858018 Tube dia 2.000 Tube wall 0.065" Length 1.180 Bearing dia 0.985 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.375 End to weld 3.125 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-261 Splines count dia 26 x 1.115 Splines length 1.120 Tube dia 2.500 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 1.875 End to weld 2.875 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-262 Splines count dia 26 x 1.115 Splines length 1.180 Tube dia 2.000 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.375 End to weld 6.625 Notes This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682 Partn number 1254-681 Splines count dia 19 X 0.850 Splines length 0.775 Tube dia 2.500 Style CVJ Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.344 End to weld 6.625 Notes use it with: 2252-682 Partn number 1254-683 Splines count dia 19 X 0.850 Splines length 0.775 Tube dia 2.500 Tube wall 0.083" Style CVJ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.435 End to weld 7.500 Notes TOYOTA Partn number 1340-20 Splines count dia 20 X 1.310 Splines length 1.765 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 9.375 Notes Toyota, Sold only in kit 1343-20L Partn number 1340-20L Splines count dia 20 X 1.310 Splines length 6.500 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Butt dia 2.435 End to weld 6.375 Notes TOYOTA Partn number 1340-21 Splines count dia 20 X 1.310 Splines length 1.880 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.435 End to weld 5.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-231 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.560 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| | Bearing dia 1.181 Butt dia 2.344 End to weld 5.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-232 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.500 Tube wall 0.083" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
