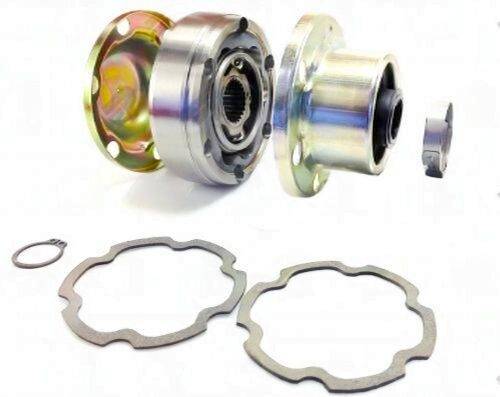

1452-7801 – CV Joint Kit – 20.3″ Splines Dia – 24 Splines – Bolt Hole Dia 8.4
$146.32
3 in stock
19 People watching this product now!
Description
CV joint kit 1452-7801. 78 OD | 20.3 x 24 spline | 21 inner race width | 23.45 outer race width. Volvo. Rzeppa design, complete kit.
Full Description
CV joints fail gradually -- click on turns, vibration under load, then grease everywhere. The 1452-7801 CV joint kit is the complete replacement before it gets to that last stage.
1452-7801 CV Joint Kit -- Rzeppa Specs & Fitment
Specs on the 1452-7801 CV joint kit: 78 OD | 20.3 x 24 spline | 21 inner race width | 23.45 outer race width. Volvo.
The outer diameter determines fit in the housing bore. The spline count determines shaft engagement. Inner and outer race widths determine how the assembly stacks in the housing -- all four have to match.
Key Features
- Style: Rzeppa -- constant velocity design for smooth power delivery at angle
- Outer dia: 78 -- must fit housing bore exactly
- Spline: 20.3 x 24 -- shaft engagement spec
- Inner race width: 21 -- race stack dimension
- Outer race width: 23.45 -- housing bore dimension
- Complete kit -- all components matched for correct assembly and load distribution
- Note: Volvo
Specifications
- SKU: 1452-7801
- Brand: UDS
- Style: Rzeppa
- Outer Dia: 78
- Spline Dia: 20.3
- Spline Count: 24
- Inner Race Width: 21
- Outer Race Width: 23.45
- Notes: Volvo
Additional information
| Splines count | 24 |
|---|---|
| Splines dia | 20.3 |
| Bolt hole dia | 8.4 |
| Outer dia | 78 |
| Outer race width | 23.45 |
| Inner race width | 21 |
| Bolt hole count | 6 |
| Gasket | INCLUDED |
| Boot cap part | INCLUDED |
| Notes | Volvo |
| Partn number | 1452-7801 |
